Satech Machinery Pvt Ltd is trusted and reliable Manufacturer and Supplier of 175 mm Semi-Automatic Bandsaw Machine in Chhattisgarh.
Our Manufacturing unit is based in Ahmedabad, Gujarat, India.

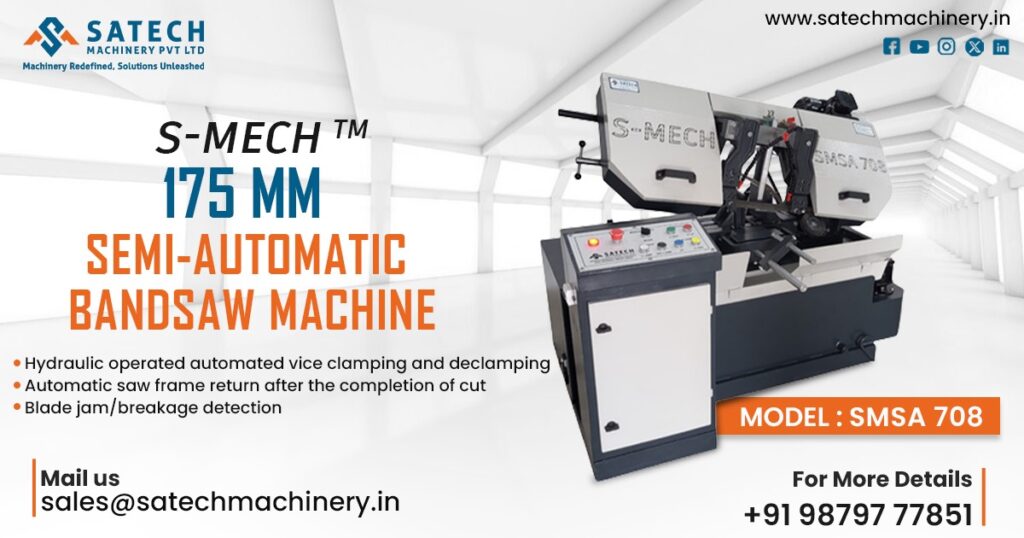

Our 175 mm Semi-Automatic Bandsaw Machine represents the perfect blend of precision engineering, advanced technology, and robust construction.
Designed to meet the demanding requirements of modern industries, this machine delivers exceptional cutting performance for metal fabrication,
workshops, and manufacturing units across Chhattisgarh.
Features of S-Mech 175 mm Semi-Automatic Bandsaw Machine
Our SMSA 708 Semi-Automatic Bandsaw Machine comes equipped with advanced features that ensure optimal performance and user convenience:
Hydraulic operated automated vice clamping and decamping
Automatic saw frame return after the completion of cut
Automatic saw height adjustment according to workpiece
Rapid blade approach till workpiece height and rapid
saw return reduces cycle time by eliminating ideal time
Rexroth/Yuken or equivalent make solenoid actuated
direction control valve and precise saw feed control valve
Delta/Siemens or equivalent make PLC with schneider,
L&T, Omron make electrical components
Blade jam/breakage detection
Optional Accessories
Material Roller Stand
Bi-Metal HSS Bandsaw Blade
Degree Cutting Fixture
Technical Specifications
CUTTING CAPACITY (ROUND) 175 MM
CUTTING CAPACITY (FLAT) 200 x 100 MM
SAW MOTOR 1 HP, 1440 RPM
HYDRAULIC MOTOR 1 HP, 1440 RPM
COOLANT PUMP 0.15 HP, 2800 RPM
DRIVE WORM GEARBOX
V-BELT SIZE B30
BLADE SIZE 2540 x 27 x 0.9 MM
BLADE SPEED 33-52-77 MTR/MIN
WEIGHT (APPROX.) 330 KG
DIMENSION (LxWxH) 1400 x 1010 x 1030 MM
How It Works
Setup Process: The operator positions the material in the vice and secures it firmly using the hydraulic clamping.
The cutting parameters including blade speed and feed rate are set according to the material type and thickness requirements.
Cutting Operation: Once cycle start button is pushed it clamps the workpiece in vice and saw blade starts rotating, the hydraulic feed control system automatically lowers the blade at a controlled feed rate,
ensuring consistent pressure and optimal cutting conditions. The high-quality blade moves through the material with precision, while the coolant system maintains optimal temperature and extends blade life.
The machine automatically stops when the cut is complete, and the blade returns to its starting position with and vice declamps automatically. Operator feed the material and starts the cycle again with cycle start push button.
Quality Control: Throughout the cutting process, the machine maintains consistent blade speed and feed rate, ensuring uniform cut quality across all workpieces.
Uses of S-Mech 175 Semi-Automatic Bandsaw Machine
The SMSA 708 Semi-Automatic Bandsaw Machine finds extensive applications across various industries in Chhattisgarh:
Metal Fabrication Industries
Automotive Sector
Mining and Heavy Industries
General Engineering Workshops
Construction Industry
Railway and Transportation
Frequently Asked Questions (FAQs)
Q: What is the maximum cutting capacity of the 175 mm Semi Automatic Bandsaw Machine?
A: The machine can cut round materials up to 175 mm in diameter and rectangular materials up to 200 x 100mm, making it suitable for a wide range of industrial applications.
Q: How does the semi-automatic operation benefit users?
A: The semi-automatic feature has the precision of automated cutting with automated vice and saw arm control which reduces the operator’s fatigue.
Q: What maintenance is required for optimal performance?
A: Regular maintenance includes blade inspection and replacement, coolant system cleaning, lubrication of moving parts, and periodic checks of hydraulic systems. Our comprehensive maintenance guide ensures easy upkeep.
Q: Can the machine handle different types of metals?
A: Yes, the variable speed control (33-77 meters per minute) allows the machine to efficiently cut various metals including mild steel, stainless steel, aluminum, and other alloys commonly used metals.
Q: What support do you provide in Chhattisgarh?
A: We offer complete support including installation, operator training, regular maintenance services, genuine spare parts supply, and technical assistance throughout Chhattisgarh with prompt response times.
Q: How energy-efficient is the machine?
A: The machine is designed for optimal energy consumption with a 1 HP saw motor and 1 HP hydraulic motor, making it cost-effective to operate while maintaining high productivity levels.
Q: What safety features are included?
A: The machine includes protective guards, emergency stop button and secure clamping to ensure operator’s safety and prevent accidents during operation.
