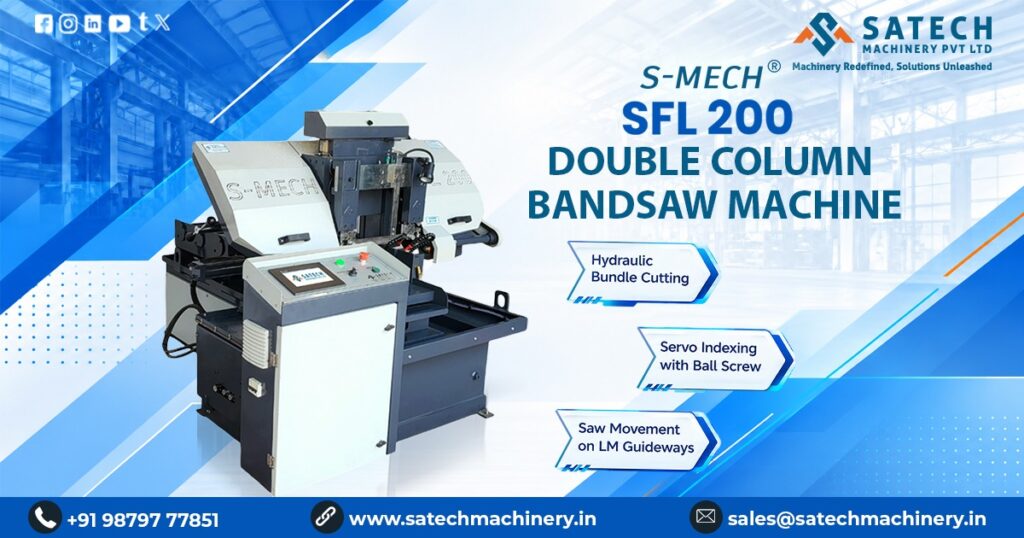

Satech Machinery Pvt. Ltd. manufactures the S-Mech SFL 200 Double Column Fully Automatic Bandsaw Machine for precise, consistent, and efficient cutting of round and square metal sections.
Our machine combines automatic indexing, variable blade speed, hydraulic operation, and robust construction for demanding industrial cutting applications.
Our Manufacturing unit is based in Ahmedabad, Gujarat, India.
SFL 200 Fully Automatic Bandsaw Machine – Key Specifications
- Model: SFL 200 (Fully Automatic)
- Round Cutting Capacity: Ø200 mm
- Square Cutting Capacity: 200 × 200 mm
- Saw Motor: 2 HP, 1440 RPM
- Hydraulic Motor: 1 HP, 1440 RPM
- Coolant Pump: 0.15 HP, 2800 RPM
- Indexing Stroke: 330 mm × 9 times
- Drive: Worm Gearbox
- Blade Size: 3000 × 27 × 0.9 mm
- Blade Speed: 20–75 m/min with VFD
- Approximate Weight: 1200 kg
- Machine Dimensions (L × B × H): 2020 × 1550 × 1380 mm
Precision Cutting with Automatic Operation
The 200mm fully automatic bandsaw machine supports automated material indexing and cutting, helping operators maintain consistent production cycles.
Its hydraulic system and controlled blade movement provide stable cutting performance for industrial applications.
Variable Blade Speed for Flexible Cutting
The machine uses a VFD-controlled blade speed of 20–75 m/min, allowing operators to select suitable cutting speeds according to material and application requirements.
Robust Industrial Construction
With an approximate weight of 1200 kg, the SFL 200 provides a sturdy machine structure for regular industrial operation. Its double-column configuration supports stable blade guidance during cutting.
Efficient Material Indexing
The 330 mm indexing stroke with up to 9 indexing times enables repeated material feeding for batch cutting applications, supporting improved production consistency.
Coolant and Hydraulic Systems
The machine incorporates a 0.15 HP coolant pump and 1 HP hydraulic motor, supporting controlled cutting operation, hydraulic movement, and effective coolant circulation during production.
Applications
The Double Column Fully Automatic Bandsaw Machine can support cutting requirements across:
- Metal fabrication industries
- Engineering workshops
- Machine manufacturing units
- Steel service centres
- Component manufacturing
- General industrial fabrication
- Production and job-work applications
Frequently Asked Questions
Q1: What is the SFL 200 Bandsaw Machine?
A1: The SFL 200 is a double-column fully automatic bandsaw machine designed for industrial metal cutting applications.
Q2: What is the maximum round cutting capacity?
A2: The machine can cut round sections up to Ø200 mm.
Q3: What square section can the machine cut?
A3: The SFL 200 provides a 200 × 200 mm square cutting capacity.
Q4: What blade speed does the machine offer?
A4: The blade operates at 20–75 m/min, with speed adjustment through a VFD.
Q5: What is the blade size?
A5: The machine uses a 3000 × 27 × 0.9 mm bandsaw blade.
Q6: Who manufactures the SFL 200?
A6: Satech Machinery Pvt. Ltd. manufactures the SFL 200 Double Column Fully Automatic Bandsaw Machine.
We Supply Double Column Fully Automatic Bandsaw Machine in Tamil Nadu including locations Chennai, Coimbatore, Madurai, Tiruchirappalli, Salem, Ambattur, Tirunelveli, Tiruppur, Avadi, Tiruvottiyur,
Thoothukkudi, Nagercoil, Thanjavur, Pallavaram, Dindigul, Vellore, Tambaram, Cuddalore, Kancheepuram, Alandur, Erode, Tiruvannamalai, Kumbakonam, Rajapalayam, Kurichi, Madavaram, Pudukkottai,
Hosur, Ambur, Karaikkudi, Neyveli, Nagapattinam.
Choose Satech Machinery’s fully automatic bandsaw technology for accurate, efficient, and dependable industrial metal cutting performance.
