Satech Machinery Pvt Ltd is a trusted manufacturer and supplier of Horizontal Bandsaw Machines in Karnataka.
Our manufacturing unit is based in Ahmedabad, Gujarat, India.

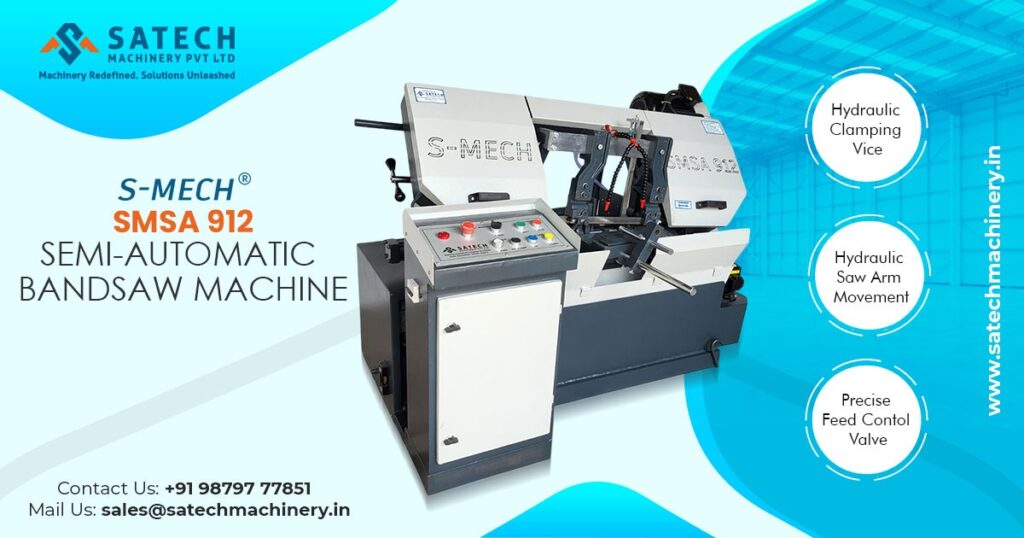

The S-Mech SMSA 912 Semi-Automatic Bandsaw Machine is designed to deliver precision cutting with high efficiency, making it ideal for both small and large-scale production environments.
Its semi-automatic operation ensures smooth workflow, while advanced features provide accuracy, speed, and safety in every cut.
Available Accessories of Semi-Automatic Bandsaw Machine
Standard Accessories
- Electric Motor
- Coolant Pump
- Job-Stopper
- M42 HSS Bi-Metal Blade
- Swarf Cleaning Brush
- Tool Kit
Optional Accessories
- Material Roller Stand
- Bi-Metal HSS Bandsaw Blade
- Manual Bar Feeding Mechanism with Worm Gear
- Degree Cutting Fixture
Technical Specifications of SMSA 912 Semi-Automatic Bandsaw Machine
| Parameter | Specification |
|---|---|
| Model | SMSA 912 |
| Cutting Capacity (Round) | Ø225 mm |
| Cutting Capacity (Flat) | 150 x 300 mm |
| Drive Motor | 1 HP, 1440 RPM |
| Hydraulic Motor | 1 HP, 1440 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive | Worm Gearbox |
| V-Belt Size | B33 |
| Blade Size | 3000 x 27 x 0.9 mm |
| Blade Speed | 37 – 52 – 70 m/min |
| Weight | 460 kg |
| Dimensions (L x W x H) | 1600 x 1000 x 1100 mm |
Why Choose Our 912mm Semi-Automatic Bandsaw Machine?
- Hydraulic-operated automated vice clamping and declamping for secure and precise cuts
- Automatic saw frame return after completing each cut
- Automatic saw height adjustment according to the workpiece
- Rapid blade approach and return reduces cycle time and eliminates idle time
- Precision feed control with Rexroth/Yuken or equivalent solenoid actuated valves
- High-quality PLC with Delta/Siemens or equivalent, and electrical components from Schneider, L&T, and Omron
- Blade jam and breakage detection for enhanced safety and reliability
- Robust construction for long-lasting performance and minimal maintenance
FAQs
Q1: What materials can the SMSA 912 cut?
A1: It can cut steel, aluminum, and a wide range of metals with precision.
Q2: Is the machine easy to operate?
A2: Yes, the semi-automatic system with a user-friendly control panel ensures simple and efficient operation.
Q3: Can it handle both round and flat materials?
A3: Yes, it can cut round bars up to Ø225 mm and flat bars up to 150 x 300 mm.
Q4: Does it support automatic height adjustment?
A4: Yes, the saw automatically adjusts its height according to the workpiece for accurate cuts.
Q5: What safety features are included?
A5: Blade jam/breakage detection, automated vice clamping, and controlled feed ensure safe operation.
