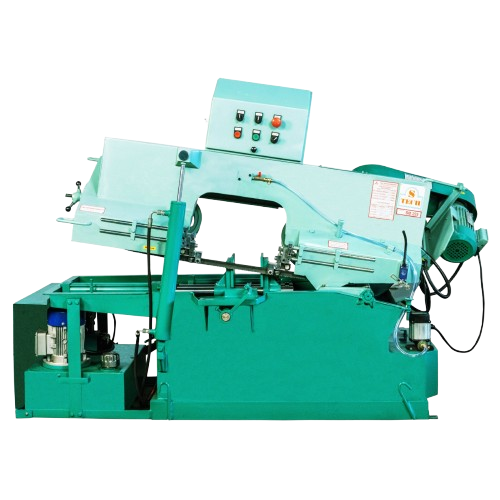

SMSA 200
Features of SMSA-200 Semi-Automatic Bandsaw Machine
- All metals ranging from very soft to very hard like copper, brass, aluminum, mild steel, alloy steel, stainless steel, and tool steel can be cut very easily.
- Can cut various sections including round, flat, angle, channel, pipes, etc.
- Efficient hydraulic operated vice to hold the workpiece firmly.
- Precise and easy hydraulic feed control.
- Bi-Metal blade gives faster, smoother, and more accurate cutting.
- Adjustable chrome-plated guide units.
- Auto machine off at the end of the cut.
- The auto-up-down motion of the blade saw arm. The blade saw arm lifts automatically at the end of the cut.
- Low noise operation.
- Spring tension to adjust the load of the saw arm which facilitates the ease of operation for various sizes and types of metals.
- Auto-operated coolant pump.
- 6 months of warranty against any manufacturing defects.
SMSA-200 Semi-Automatic Bandsaw Machine Manufacturer and Supplier
Satech Machinery Pvt Ltd, located in Ahmedabad, Gujarat, India, is a distinguished manufacturer, exporter, and supplier of high-quality industrial machinery. Among our premier offerings is the SMSA 200 Semi-Automatic Bandsaw Machine, designed to cater to the diverse cutting needs of various industries. With a strong emphasis on precision, efficiency, and user-friendliness, the SMSA 200 is an indispensable tool for workshops, fabrication units, and manufacturing facilities.
The SMSA 200 Semi-Automatic Bandsaw Machine is engineered for versatility and high performance, making it suitable for cutting a wide range of materials, including metals, plastics, and composites. Its robust construction and advanced features ensure consistent performance, making it a reliable choice for both small-scale operations and larger industrial applications.
The SMSA 200 is capable of handling a variety of cutting tasks, from intricate shapes to straight cuts, making it an ideal solution for metalworking, woodworking, and plastic fabrication. Its adaptability makes it a valuable asset in any workshop or manufacturing environment.
Standard Accessories
- Electric Motor
- Coolant Pump
- ON-OFF Push Button
- Job-Stopper
- M42 HSS Bi-Metal Blade
- Swarf Cleaning Brush
- Tool Kit
Optional Accessories
- Material Roller Stand
Inquire Here
Technical Specifications
| MODEL | SMSA 200 |
|---|---|
| Cutting Cap. - Round (mm) | 200 |
| Cutting Cap. - Square (mm) | 150 x 150 |
| Drive Motor | 1 HP, 1440 RPM |
| Hydraulic Motor | 1 HP, 1440 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive | Helical Gear Pinion |
| V-Belt Size | A35 |
| Blade Size (mm) | 3000 x 27 x 0.9 |
| Blade Speed (mtr/min) | 37-52-70 |
| Weight (kg) | 385 |
| Dimensions L x W x H (mm) | 1700 x 740 x 1070 |
