Designed with user convenience in mind, the SMSA 912 offers a user-friendly control panel, simplifying setup and operation. Its reliable, high-performance motor and durable saw blade ensure clean, precise cuts, enhancing the overall productivity of your operations. The machine’s robust construction is engineered for long-lasting performance, reducing maintenance requirements and downtime. Whether used in fabrication, manufacturing, or maintenance environments, the SMSA 912 Semi-Automatic Bandsaw Machine is a reliable and efficient solution for all your cutting needs, offering superior quality, speed, and accuracy.

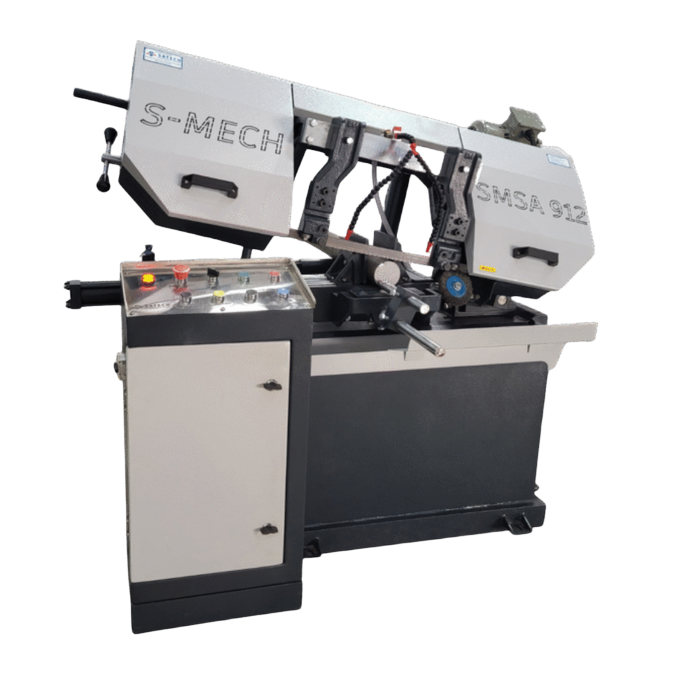

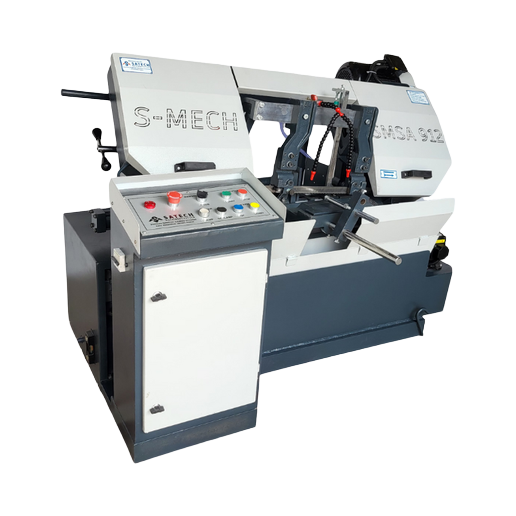

SMSA 912
Features of SMSA 912 Semi-Automatic Bandsaw Machine
- Hydraulic operated automated vice clamping and declamping
- Automatic saw frame return after the completion of cut
- Automatic saw height adjustment according to workpiece
- Rapid blade approach till workpiece height and rapid saw return redues cycle time by eliminating ideal time
- Rexroth/Yuken or equivalent make solenoid actuated direction control valve and precise saw feed control valve
- Delta/Siemens or equivalent make PLC with schneider, L&T, Omron make electrical components
- Blade jam/breakage detection
Manufacturer and Supplier OF SMSA 912 Semi-Automatic Bandsaw Machine
The SMSA 912 Semi-Automatic Bandsaw Machine from Satech Machinery Pvt Ltd is a high-quality, efficient cutting solution designed to meet the demands of precision cutting in various industrial applications. Built for both small and large-scale production environments, the SMSA 912 offers exceptional performance and durability. The semi-automatic operation ensures ease of use, making it an ideal choice for workshops that require high throughput while maintaining accuracy in every cut. The machine is equipped with advanced features such as adjustable cutting angles, variable speed control, and a robust blade drive system, allowing it to effortlessly cut through a wide range of materials including steel, aluminum, and other metals.
Standard Accessories
- Electric Motor
- Coolant Pump
- Job-Stopper
- M42 HSS Bi-Metal Blade
- Swarf Cleaning Brush
- Tool Kit
Optional Accessories
- Material Roller Stand
- Bi-Metal HSS Bandsaw Blade
- Manual Bar Feeding Mechansim with Worm Gear
- Degree Cutting Fixture
Inquire Here
Technical Specifications
| MODEL | SMSA 912 |
|---|---|
| Cutting Capacity (Round) (mm) | Ø225 |
| Cutting Capacity (Flat) (mm) | 150 x 300 |
| Drive Motor | 1 HP, 1440 RPM |
| Hydraulic Motor | 1 HP, 1440 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive | Worm Gearbox |
| V-Belt Size | B33 |
| Blade Size (mm) | 3000 x 27 x 0.9 |
| Blade Speed (mtr/min) | 37-52-70 |
| Weight (kg) | 460 |
| Dimensions L x W x H (mm) | 1600 x 1000 x 1100 |
