PD13

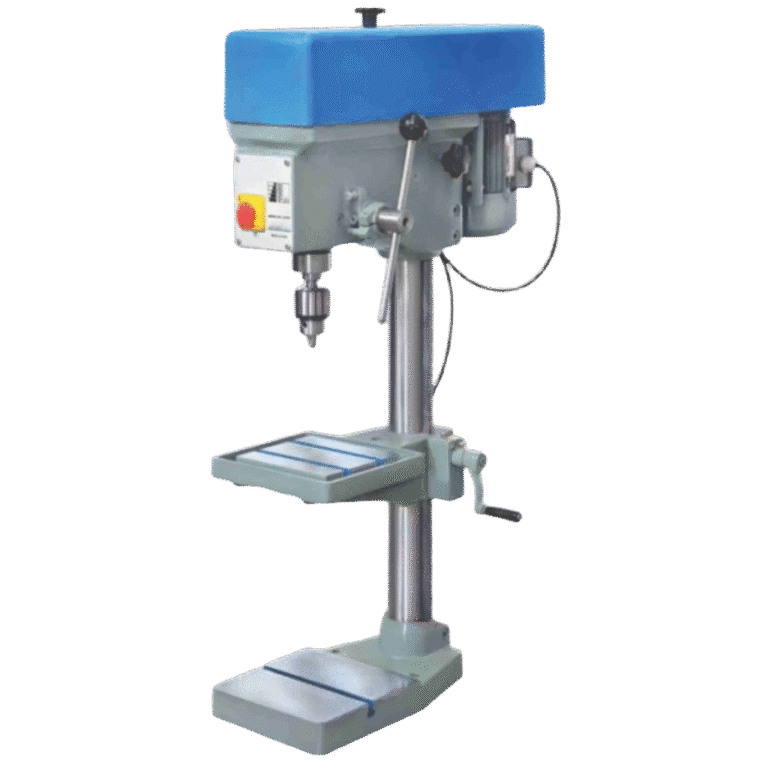

Features of Pillar Drill Machine PD13
- The PD13 is designed for accurate drilling operations
- Equipped with a robust motor, the PD13 delivers consistent power for heavy-duty drilling tasks
- The machine features adjustable speed settings
- Built with high-quality materials, the PD13 boasts a durable and stable design that minimizes vibrations during operation
- Accessories for longer life and preventing corrosion and pillage associated with usual chrome plating.
- The machine features an adjustable work table that can be easily positioned to accommodate various workpieces
- The PD13 is designed for easy maintenance, with accessible components that simplify routine checks and servicing.
- Work table T-Slot machining.
- The main gear and pulley are perfectly balanced.
- All moving parts are fine-finished with grinding to a close tolerance.
We Offer Metal PD13 Pillar Drilling Machine Manufacturer and Supplier in Ahmedabad India
The Pillar Drill Machine PD13, manufactured by Satech Machinery Pvt Ltd in Ahmedabad, Gujarat, is a state-of-the-art drilling solution designed for precision and efficiency in various industrial applications. This robust machine is ideal for metalworking, woodworking, and fabrication tasks, making it a versatile addition to any workshop or manufacturing facility. With a focus on quality and performance, Satech Machinery has engineered the PD13 to meet the demanding needs of professionals across multiple sectors.
Safety is a priority in the design of the PD13. The machine includes essential safety features such as emergency stop buttons, protective guards, and overload protection to ensure a safe working environment.
The PD13 Pillar Drill Machine from Satech Machinery Pvt Ltd is a high-performance drilling solution that combines precision, durability, and user-friendly features. With a commitment to quality and customer satisfaction, Satech Machinery continues to be a trusted name in the industry, providing reliable machinery that enhances productivity and efficiency. Explore the capabilities of the PD13 and elevate your drilling operations today!
Standard Accessories
- Motor Pully
- Drill Drift Key
Optional Accessories
- Electric Motor
- V-Belt
- R & F Switch
- Drill Chuck
- Arbour
- Coolant Pump With Tank
- Drill Vice
- Machine Lamp
Inquire Here
Technical Specifications
| MODEL | PD13 |
|---|---|
| Max. Drilling Capacity (mm) | 13 |
| Diameter of column (mm) | 65 |
| Spindle travel (mm) | 70 |
| Distance Spindle axix to column (mm) 185 | 185 |
| Max. Distance Spindle nose to table (mm) 450 | 450 |
| Max. Distance Spindle nose to base (mm) 600 | 600 |
| Spindle taper | MT-2 |
| Spindle Speed range (r/min) | 480-4000 |
| Spindle Speed Series | 5 |
| Table Surface (mm) | 230 x 220 |
| Power of main Motor kW/HP | 1.0/0.5 |
| 3 - phase AC Motor | - |
| G.W/N.W (Kg) | 75/100 |
| Packing Dimension (mm) | H-890, x L-660, x W-330 |
