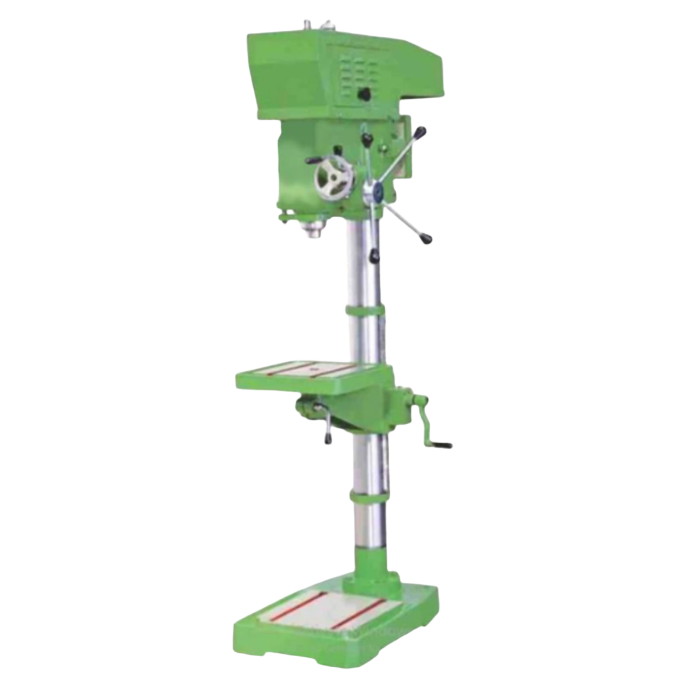

PD25-LD
Features of Pillar Drill Machine PD25-LD
- The main spindle and pinion are made from steel by forging.
- The main spindle run out is checked for accuracy as per is 2199.
- All moving parts are fine-finished with grinding to a close tolerance.
- Main spindle NTN Japan makes bearings with grease with a grease bath, so for permanent oiling.
- The main gear and pulley are perfectly balanced.
- All gears are made from SGI casting and bearing drive.
- Accessories for longer life and preventing corrosion and pillage associated with usual chrome plating.
- Work table T-Slot machining.
Manufacturer and Supplier of the PD25-LD Pillar Drilling Machine in Ahmedabad India
Satech Machinery Pvt Ltd, based in Ahmedabad, Gujarat, India, is a trusted manufacturer and supplier of the PD25-LD Pillar Drill Machine. With years of expertise in precision engineering and industrial machinery, we take pride in delivering high-quality, durable, and efficient pillar drill machines designed for a wide range of drilling applications.
The PD25-LD Pillar Drill Machine is a robust and high-performance drilling solution ideal for industrial and workshop applications. Built with precision and durability in mind, this machine ensures smooth drilling operations with minimal maintenance requirements.
Whether you need a pillar drill machine for industrial use or heavy-duty applications, Satech Machinery Pvt Ltd. We ensure that every PD25-LD pillar drill machine meets industry standards and delivers exceptional results. Contact us today to learn more about our products, pricing, and availability!
Standard Accessories
- Motor Pully
- Drill Drift Key
Optional Accessories
- Electric Motor
- V-Belt
- R & F Switch
- Drill Chuck
- Arbour
- Coolant Pump With Tank
- Drill Vice
- Machine Lamp
Inquire Here
Technical Specifications
| Model | PD25-LD |
|---|---|
| Machine Capacity | |
| Drilling (C.I.) | 25 |
| Drilling (M.S.) | 25 |
| Tapping Cap. | 15 |
| Drilling Head | |
| Tapper Spindle | M.T-3 |
| Quil Movement | 155 |
| Speeds | |
| No. Range of Spindle | 8 |
| Spindle Speed (Min./Max.) | 130 to 2600 |
| Feeds | |
| No. Range of Feed | Manual |
| Working Range | |
| Dist. From Spindle Centre to Column Face | 230 |
| Max. Dist. From Spindle to Base Pite | 1050 |
| Max. Dist. From Spindle to Work Table | 680 |
| Working Table | |
| Table Diameter | 310 X 310 |
| Baste Plate & Column | |
| Column Diameter | 92 |
| Base Plate | 370 X 550 |
| No. of 't' Slots | 2 |
| Power Drilling Motor | 1 HP / 1440 RPM |
| Weight (Kgs.) Approximate | 185 kg. |
| V-Belt (No.) | B-49 |
