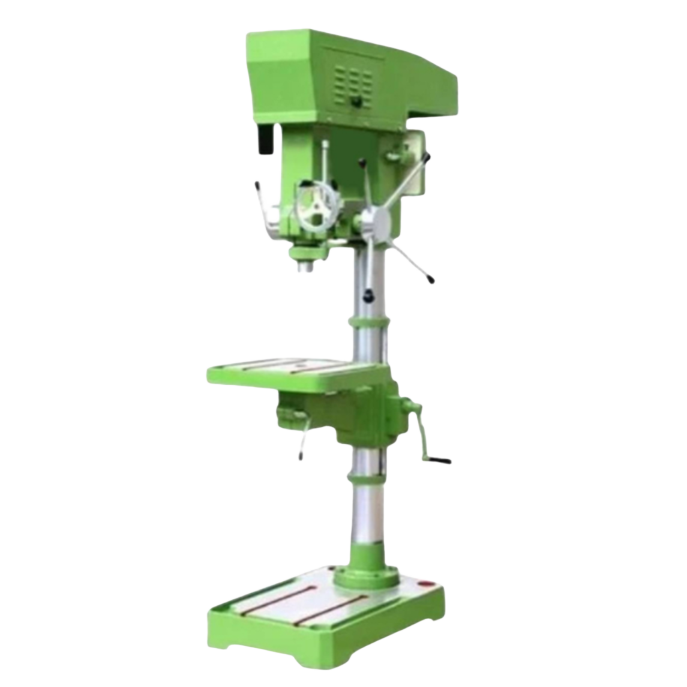

PD25-MD
Features of Pillar Drill Machine PD25-MD
- The main spindle and pinion are made from steel by forging.
- The main spindle run out is checked for accuracy as per is 2199.
- All moving parts are fine-finished with grinding to a close tolerance.
- Main spindle NTN Japan makes bearings with grease with a grease bath, so for permanent oiling.
- The main gear and pulley are perfectly balanced.
- This level of precision is essential for applications that require tight tolerances and high-quality results.
- Equipped with a robust motor, the PD25-MD delivers consistent power for heavy-duty drilling tasks.
- The machine features adjustable speed settings, allowing operators to select the optimal speed for different materials and drilling requirements.
- Built with high-quality materials, the PD25-MD boasts a durable and stable design that minimizes vibrations during operation.
- The machine features an adjustable work table that can be easily positioned to accommodate various workpieces.
- With its compact design, the PD25-MD is suitable for workshops with limited space.
PD25-MD Pillar Drilling Machine Manufacturer and Supplier in Ahmedabad India
The PD25-MD Pillar Drilling Machine, manufactured by Satech Machinery Pvt Ltd in Ahmedabad, Gujarat, is a state-of-the-art drilling solution designed to meet the diverse needs of various industrial applications. With a commitment to quality and innovation, Satech Machinery has engineered the PD25-MD to deliver exceptional performance, making it an indispensable tool for metalworking, woodworking, and fabrication tasks. This machine is built to provide high precision and reliability, ensuring that it can handle the rigorous demands of modern manufacturing environments.
The PD25-MD is versatile enough to handle a wide variety of materials including metals, plastics, and wood. This makes it suitable for a variety of applications in manufacturing, construction, and construction projects. Despite its size, it does not compromise on performance or capabilities, making it an ideal choice for a variety of work environments. This ease of maintenance helps keep the machine in top working condition, reducing downtime and increasing productivity. The machine includes essential safety features such as emergency stop buttons, protective guards, and overload protection to ensure a safe working environment for operators.
Standard Accessories
- Motor Pully
- Drill Drift Key
Optional Accessories
- Electric Motor
- V-Belt
- R & F Switch
- Drill Chuck
- Arbour
- Coolant Pump With Tank
- Drill Vice
- Machine Lamp
Inquire Here
Technical Specifications
| Model | PD25-MD |
|---|---|
| Machine Capacity | |
| Drilling (C.I.) | 25 |
| Drilling (M.S.) | 25 |
| Tapping Cap. | 15 |
| Drilling Head | |
| Tapper Spindle | M.T-3 |
| Quil Movement | 175 |
| Speeds | |
| No. Range of Spindle | 8 |
| Spindle Speed (Min./Max.) | 130 to 2600 |
| Feeds | |
| No. Range of Feed | Manual |
| Working Range | |
| Dist. From Spindle Centre to Column Face | 250 |
| Max. Dist. From Spindle to Base Pite | 970 |
| Max. Dist. From Spindle to Work Table | 530 |
| Working Table | |
| Table Diameter | 370 X 370 |
| Baste Plate & Column | |
| Column Diameter | 92 |
| Base Plate | 580 X 365 |
| No. of 't' Slots | 2 |
| Power Drilling Motor | 1 HP / 1400 RPM |
| Weight (Kgs.) Approximate | 225 kg. |
| V-Belt (No.) | B-52 |
