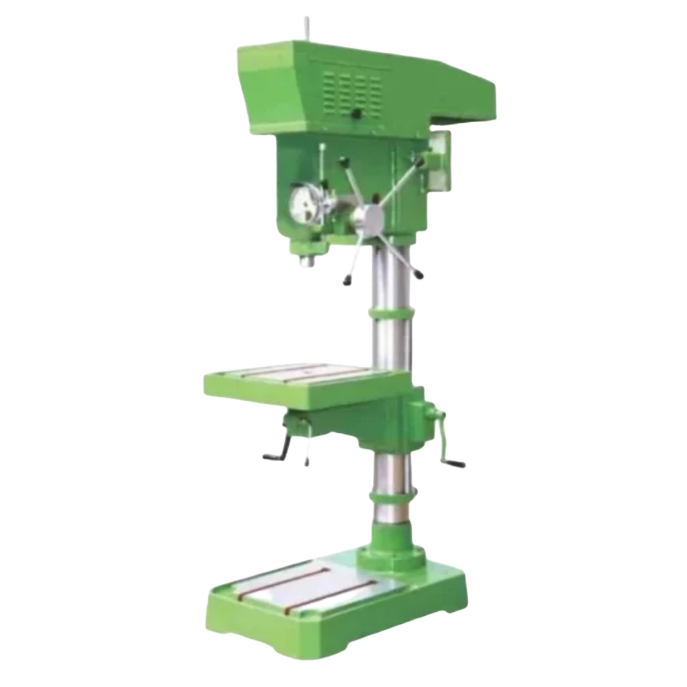

PD40
Features of Pillar Drill Machine PD40
- The main spindle and pinion are made from steel by forging.
- The main spindle run out is checked for accuracy as per is 2199.
- Ensures accurate hole placement for various materials.
- Delivers consistent performance for heavy-duty tasks.
- Adjustable speeds for optimal drilling based on material type.
- Durable design minimizes vibrations and enhances stability.
- User-friendly controls reduce operator fatigue during extended use.
- Easily positioned to accommodate different workpieces.
- Includes emergency stop buttons and protective guards for safe operation.
- Accessible components simplify routine servicing.
- Space-saving design is suitable for various workshop sizes.
- Capable of drilling metals, plastics, and wood.
- All gears are made from SGI casting and bearing drive.
- Accessories for longer life and preventing corrosion and pillage associated with usual chrome plating.
- Work table T-Slot machining.
PD40 Pillar Drilling Machine Manufacturer and Supplier in Ahmedabad India
The Pillar Drill Machine PD40, manufactured by Satech Machinery Pvt Ltd in Ahmedabad, Gujarat, is a premier drilling solution designed to meet the rigorous demands of various industrial applications. With a focus on precision, durability, and user-friendliness, the PD40 is an essential tool for metalworking, woodworking, and fabrication tasks. Satech Machinery, a trusted name in the machinery manufacturing sector, has engineered the PD40 to deliver exceptional performance, making it a valuable addition to any workshop or manufacturing facility.
Safety is a top priority in the design of the PD40. The machine includes essential safety features such as emergency stop buttons, protective guards, and overload protection to ensure a safe working environment for operators.
The PD40 Pillar Drill Machine from Satech Machinery Pvt Ltd is a high-performance drilling solution that combines precision, durability, and user-friendly features. Whether you are in a manufacturing facility, a metalworking shop, or a woodworking environment, the PD40 is designed to meet your drilling needs effectively. Explore the capabilities of the PD40 and elevate your drilling operations today
Standard Accessories
- Motor Pully
- Drill Drift Key
Optional Accessories
- Electric Motor
- V-Belt
- R & F Switch
- Drill Chuck
- Arbour
- Coolant Pump With Tank
- Drill Vice
- Machine Lamp
Inquire Here
Technical Specifications
| Model | PD40 |
|---|---|
| Machine Capacity | |
| Drilling (C.I.) | 45 |
| Drilling (M.S.) | 40 |
| Tapping Cap. | 25 |
| Drilling Head | |
| Tapper Spindle | MT-4 |
| Quil Movement | 240 |
| Speeds | |
| No. Range of Spindle | 8 |
| Spindle Speed (Min./Max.) | 45 to 1000 |
| Feeds | |
| No. Range of Feed | Manual |
| Working Range | |
| Dist. From Spindle Centre to Column Face | 350 |
| Max. Dist. From Spindle to Base Pite | 1030 |
| Max. Dist. From Spindle to Work Table | 550 |
| Working Table | |
| Table Diameter | 485 X 485 |
| Baste Plate & Column | |
| Column Diameter | 135 |
| Base Plate | 800 X 525 |
| No. of 't' Slots | 2 |
| Power Drilling Motor | 2 HP / 960 RPM |
| Weight (Kgs.) Approximate | 550 kg. |
| V-Belt (No.) | B-71 |
