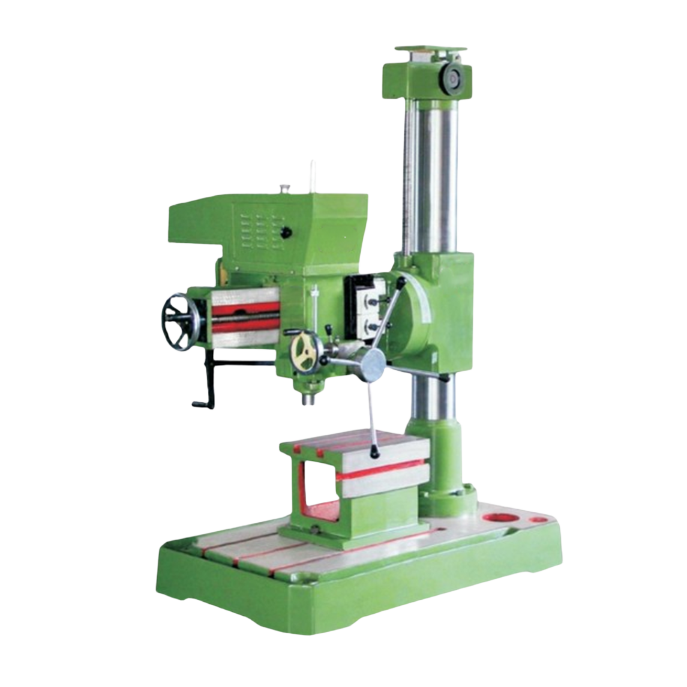

RD-40
Features of Radial Drill Machine RD-40
- Built with high-grade cast iron, the RD-40 offers exceptional stability and durability, minimizing vibrations during operation.
- Capable of performing various operations such as drilling, reaming, tapping, and counterboring, making it suitable for a wide range of applications.
- set up and adjust the machine for a variety of drilling operations.
- The machine is designed to provide easy access to components, simplify maintenance, and reduce downtime.
- Satech Machinery offers customizable features and accessories to tailor the RD-40 to specific operational needs.
- The RD-40 features a high-performance motor that provides ample power for heavy-duty drilling tasks, enhancing productivity.
RD-40 Radial Drill Machine by Satech Machinery Pvt Ltd, a leading manufacturer and supplier based in Ahmedabad, Gujarat, India.
The RD-40 Radial Drill Machine from Satech Machinery Pvt Ltd is a state-of-the-art solution designed to meet the diverse drilling needs of various industries. Based in Ahmedabad, Gujarat, India, Satech Machinery has established itself as a trusted manufacturer and supplier, renowned for its commitment to quality, innovation, and customer satisfaction. The RD-40 model exemplifies our dedication to engineering excellence, offering a robust and versatile drilling solution that enhances productivity and precision in machining operations.
Engineered with advanced technology and high-quality materials, the RD-40 Radial Drill Machine is ideal for drilling, reaming, tapping, and counterboring operations. Its radial arm design allows for easy adjustment and positioning, making it suitable for both small and large workpieces. Whether you are in the automotive, aerospace, or general manufacturing sector, the RD-40 is designed to deliver exceptional performance and reliability.
At Satech Machinery, we understand the importance of efficiency in today’s competitive market. That’s why the RD-40 is equipped with features that streamline operations, reduce downtime, and ensure consistent results. Our team of skilled engineers and technicians is dedicated to providing comprehensive support, from installation to maintenance, ensuring that your machine operates at peak performance throughout its lifespan.
Standard Accessories
- Motor Pulley
- V Belt
- R/F & U/D Switch
- Box Table
- Drill Drift
- 2 HP Electric Motor
- 0.5 HP Electric Motor
Optional Accessories
- Coolant Pump with Tank
- Drill Vice
- Drill Chuck
- Arbor
Inquire Here
Technical Specifications
| MODEL | RD40 |
|---|---|
| Drilling Capacity in M.S. | 35 |
| Drilling Capacity in C.I. | 40 |
| Boring | 50 |
| Tapping Capacity in M.S. | 18 |
| Tapping Capacity in C.I. | 20 |
| Spindle Nose | MT4 |
| Spindle Nose Outside Daimeter | 54 |
| Spindle Sleeve Daimeter | 78 |
| Travel of Spindle | 220 |
| No. of Spindle Speeds | 8 STEP PULLY |
| Spindle Speed (Min./Max.) | 70, 2000 |
| No. of Power Feed | MANUAL |
| Drill Head Motor | 1.5 HP, 1440 RPM |
| Elevating Motor | 0.5 HP, 1440 RPM |
| Column Diameter | 165 |
| Dist. From Spindle to Base (Min./Max.) | 300, 910 |
| Dist. From Column to Centre (Min./Max.) | 350, 900 |
| Drill Head Traverse | 450 |
| Drilling Radius | 980 |
| Traverse of ARM | 720 |
| Base Plate Size | 180 |
| Working Surface | 590 × 800 |
| No. of T-Slots | 4 |
| Width of Cast Side | 15 mm |
| Overall Diamention (L × W x H) | 1300 x 900 x 1800 |
| Weight (Approx.) | 800 kg |
