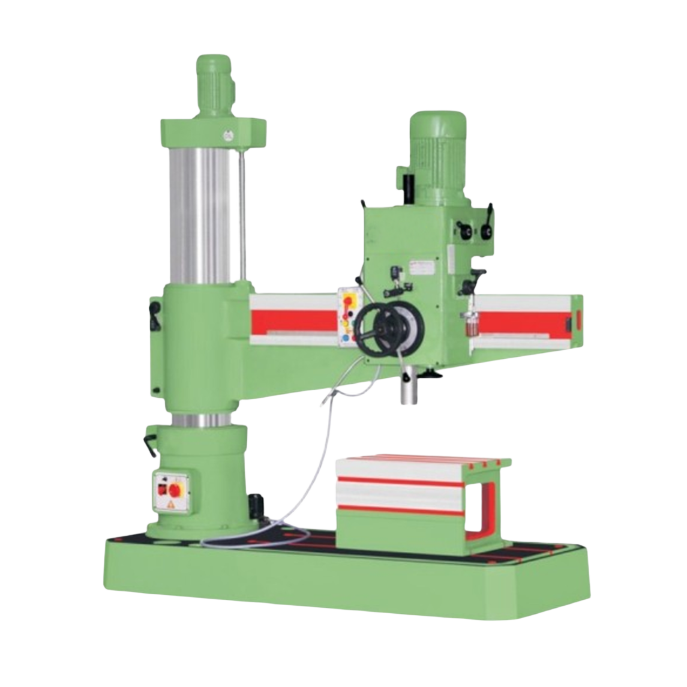

RD50
Features of Radial Drill Machine RD50
- Made from high-quality cast iron for exceptional stability and durability, minimizing vibrations during operation.
- Features a highly adjustable radial arm for easy positioning of the drill head, accommodating various workpiece sizes and shapes.
- Equipped with precision bearings and a finely calibrated feed mechanism for accurate drilling and consistent results.
- A robust motor provides ample torque for heavy-duty tasks, enhancing productivity and efficiency.
- Includes emergency stop buttons and protective covers to ensure operator safety during operation.
- Designed for easy access to components, simplifying maintenance and reducing downtime.
Manufacturer and Supplier of RD50 Radial Drill Machine in Ahmedabad India
The RD50 Radial Drill Machine from Satech Machinery Pvt Ltd is a premier solution designed to meet the rigorous demands of various industrial applications. As a leading manufacturer and supplier based in Ahmedabad, Gujarat, India, Satech Machinery is committed to delivering high-quality machinery that enhances productivity and precision in machining operations. The RD50 model stands out for its robust construction, advanced features, and versatility, making it an essential tool for industries such as automotive, aerospace, and general manufacturing.
Engineered with cutting-edge technology and high-grade materials, the RD50 Radial Drill Machine is designed to perform a wide range of drilling operations, including drilling, reaming, tapping, and counterboring. Its innovative radial arm design allows for easy adjustment and positioning, accommodating both small and large workpieces with ease. This adaptability ensures that the RD50 can handle diverse machining tasks, making it a valuable asset for any workshop.
At Satech Machinery, we prioritize efficiency and reliability. The RD50 is equipped with features that streamline operations, reduce downtime, and ensure consistent performance. Our team of experienced engineers and technicians is dedicated to providing comprehensive support, from installation to maintenance, ensuring that your machine operates at its best throughout its lifespan. With the RD50, you can expect not only superior performance but also a commitment to quality that has made Satech Machinery a trusted name in the industry.
Standard Accessories
- Motor Pulley
- V Belt
- R/F & U/D Switch
- Box Table
- Drill Drift
- 2 HP Electric Motor
- 0.5 HP Electric Motor
Optional Accessories
- Coolant Pump with Tank
- Drill Vice
- Drill Chuck
- Arbor
Inquire Here
Technical Specifications
| MODEL | RD50 |
|---|---|
| Drilling Capacity in M.S. | 50 |
| Drilling Capacity in C.I. | 50 |
| Boring | 90 |
| Tapping Capacity in M.S. | 32 |
| Tapping Capacity in C.I. | 30 |
| Spindle Nose | MT5 |
| Spindle Nose Outside Daimeter | 80 |
| Spindle Sleeve Diameter | 80 |
| Travel Of Spindle | 270 |
| No. of Spindle Speeds | 6 |
| Spindle Speed (Min./Max.) | 78, 1100 |
| No. of Power Feed | 3 |
| Drill Head Motor | 4 KW |
| Elevating Motor | 1.5 KW |
| Column Diameter | 270 |
| Dist. From Spindle to Base (Min./Max.) | 600, 1300 |
| Dist. From Column to Centre (Min./Max.) | 1600 |
| Drilling Radius | 1600 |
| Traverse of ARM | 700 |
| Base Plate Size | 230 |
| Working Surface | 900 × 1400 |
| No. of T-Slots | 2, 16 |
| Width of Cast Side | 16 |
| Overall Diamention (L × W x H) | 2250 × 950 × 2500 |
| Weight (Approx.) | 2000 kg |
