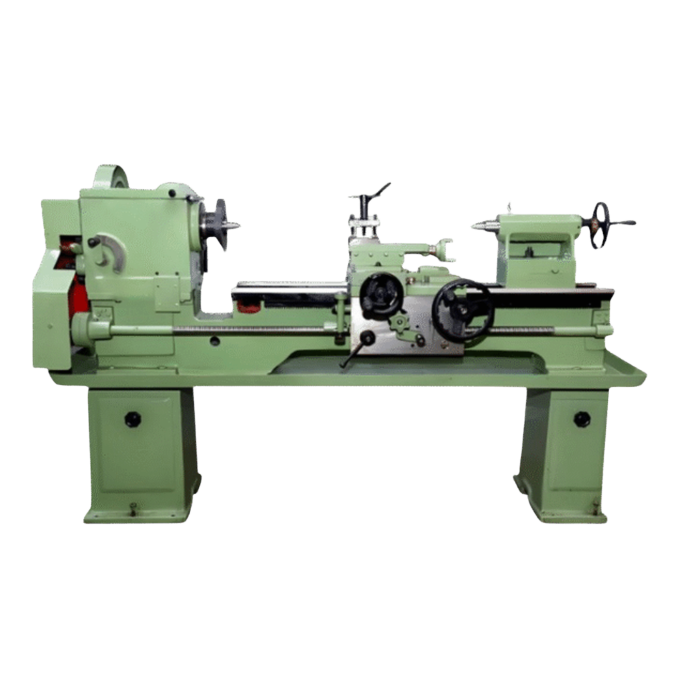

Light Duty Lathe Machine
- Ensures accurate cutting and shaping of materials with minimal deviations.
- Made from high-grade materials for durability and long-lasting performance.
- Provides smooth power transmission with reduced vibration and noise.
- Multiple speed options for enhanced flexibility in machining operations.
- User-friendly design with minimal maintenance requirements.
- Increases machine longevity and ensures smooth movement of the carriage.
- Offers stability and precision for various machining tasks.
- Keeps components cool and reduces wear and tear.
- Suitable for turning, threading, drilling, and other machining tasks.
Light Duty Lathe Machine Manufacturer and Supplier in Ahmedabad India
The Light-Duty Lathe Machine with a V-Belt Drive is a highly efficient and precision-driven machining tool designed for light-duty industrial applications. It is an ideal choice for workshops, tool rooms, and small-scale manufacturing units that require high accuracy and smooth operations in metal cutting, shaping, and threading tasks.
This lathe machine is equipped with a V-belt drive system, which ensures smooth and efficient power transmission while minimizing vibrations and operational noise. The robust all-geared design enhances reliability, providing a stable and precise machining experience. Built with high-quality materials, it offers durability and long-lasting performance even under continuous usage.
Standard Accessories
- Harden bed
- Dead Center-2 Nos
- Center adapter
- Chuck Plate Tool Post Key
- Change gear set
- Motor Pulley
- Switch
- V-belt
Optional Accessories
- steady rest
- follow rest
- Face plate
- Taper turning attachment
- Electric Motor Norton Gear Box
- Three Speed Gear Box
- Rear Tool Post
- Coolent Pump With Tank
- Machine Lamp
Inquire Here
Technical Specifications
| MODEL | SLDL1 | SLDL2 |
|---|---|---|
| Length of Bed | 4'-6" (1370 m.m) | 6' (1820 m.m) |
| Width of Bed | 9 1/2" (238 m.m) | 9 1/2" (238 m.m) |
| Height of Center | 6 1/2" (165 m.m) | 6 1/2" (165 m.m) |
| Admit Between Center | 750 m.m | 1100 m.m |
| Swing Over Cross Slide | 190 m.m | 190 m.m |
| Swing in Gap | 525 m.m | 525 m.m |
| Spindle in Bore | 40 m.m | 40 m.m |
| Tail Stock Spindle Travel | 125 m.m | 125 m.m |
| Spindle Speed Nos | 8 | 8 |
| Spindle Speed Range | 40 To 950 | 40 To 950 |
| Taper in Spindle | MT-5 | MT-5 |
| Treading Range MM. | 1 To 6 Pitch (2 Τo 24 ΤΡΙ) | 1 To 6 Pitch (2 Τo 24 ΤΡΙ) |
| KW/HP (Required) | 0.75/1 | 0.75/1 |
