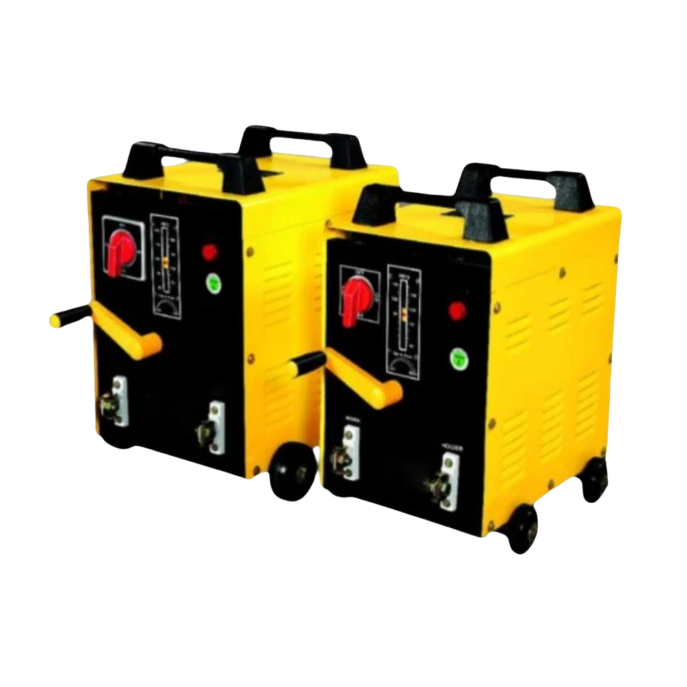

Regulator Type Mini Arc Welding Machine
- Modern looks, novel design concepts.
- Epoxy powder coated body for rust free long life.
- Coil varnishing by vacuum pressurized impregnating varnishing system to enhance reliability and services life.
- High efficiency, ener’gy saving, low maintenance.
Regulator Type Mini Arc Welding Machine Manufacturer and Supplier in Ahmedabad India
The Regulator Type Mini Arc Welding Machine from Satech Machinery Pvt Ltd represents a breakthrough in portable welding technology, designed to provide professional-grade performance with maximum convenience and efficiency. This compact, lightweight machine is tailored to meet the needs of both seasoned welders and DIY enthusiasts alike, offering exceptional versatility for a wide range of welding applications. Whether for light industrial work, repair tasks, or on-site welding jobs, this machine is engineered to deliver reliable, consistent results across various materials and conditions.
The Regulator Type Mini Arc Welding Machine from Satech Machinery Pvt Ltd is a powerful, compact, and energy-efficient tool that brings professional-grade welding capabilities to a wide range of users. Whether you’re an experienced welder or just starting out, this machine provides the versatility, reliability, and safety features required for high-quality welds across a variety of applications. Its portability, ease of use, and cost-effectiveness make it an invaluable addition to any workshop or job site.
Optional Accessories
Inquire Here
Technical Specifications
| PARTICULARS | UNITS | RM15 | RM20 | RM25 |
|---|---|---|---|---|
| Input Supply | Volts | 220 / 415 | ||
| Phase | 1 or 3 Phase | |||
| Frequency | Hzs. | 50 | ||
| Open Circuit Voltage (DCV) | Volts | 50 | ||
| Insulation | Class | A or F | ||
| Welding Current Range | Amps. | 45 - 150 | 50 - 200 | 50 - 250 |
| Max. Continuous Hand Welding Current at 30% Duty Cycle | Amps. | 120 | 160 | 200 |
| Welding Electrode Size Min. Max. | MM MM | 1.6 3.15 | 1.6 4 | 1.6 5 |
| Cooling | Natural Air | |||
| Max. Dimensions (Approx) | L -MM W-MM H-MM | 510 385 520 | 520 435 560 |
|
| Weight (Approx) | Kgs. | 45 | 55 | 65 |
| Confirm To | IS-1851 -1997 | |||
