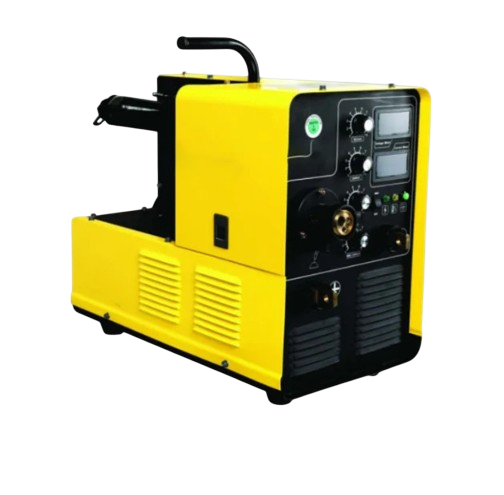

Inverter Base MIG MAG CO2 250 Single Phase

  • MIG/MAG or MMA Welding features.
  • Pre-selection of OCV and Gas Flow Rate.
  • Smooth, spatter-free CO2, MIG/MAG welding.
  • Excellent quality with Solid/Flux cored/SS Wire.
  • Protection against Thermal Overload.
  • Maintenance-free and weld-safe rugged outfit.
  • Ready to use Package Supplied with sturdy Gun (3 MTR. long), 2 roll Drive in-built Feeder, and all accessories.
  • Medium duty. Lightweight, flexible cable, Gas Cooled Torch.
  • Unmatched Welding Performance.
  • Compact in size and Light in Weight.

Inverter Base MIG MAG CO2 250 Single Phase Manufacturer and Supplier in Ahmedabad India

The Inverter Base MIG MAG CO2 250 Single Phase from Satech Machinery Pvt Ltd is a versatile and high-performance welding machine designed to provide exceptional results in a variety of industrial applications. Powered by advanced inverter technology, this machine offers superior energy efficiency, stable arc performance, and precise control, making it ideal for both professional welders and industrial operations. With a robust 250 Amp output, it is well-suited for welding materials such as mild steel, stainless steel, and aluminum, allowing for both thin sheet metal and thicker components to be welded with ease. The machine supports MIG (Metal Inert Gas), MAG (Metal Active Gas), and CO2 welding processes, providing the flexibility needed for various types of projects and material specifications.

The Inverter Base MIG MAG CO2 250 Single Phase is designed with user convenience in mind, featuring a compact and portable design that allows for easy transportation and storage. Despite its compact size, the machine delivers reliable performance with a high-duty cycle, making it capable of handling long welding sessions without overheating. The intuitive control panel, along with a digital display, allows operators to easily monitor and adjust key welding parameters such as voltage, amperage, and wire feed speed for precise control over the welding process. With built-in safety features like thermal overload protection and overvoltage safeguards, this machine ensures secure and safe operation.

Optional Accessories

Inquire Here

Technical Specifications

PARTICULARSUNITS250MIG-S
Input SupplyPhase230V 1 Phase
Input CurrentAmps42
Power CapacitanceKVA9.2
Output Current RangeAmps50-250
Open Circuit Voltage DCVolts15-29
Welding Current @60% Duty Cycle250
Wire Feeder TypeInbuilt
Diameter of the CoilMM270
Diameter of the WireMM0.8
Insulation ClassF
CoolingForced Air Cooled
Protection ClassIP21
Max. Dimensions (Approx) (L x W x H)Μ.Μ.450X250X480
Weight (Approx)Kgs.25.4
