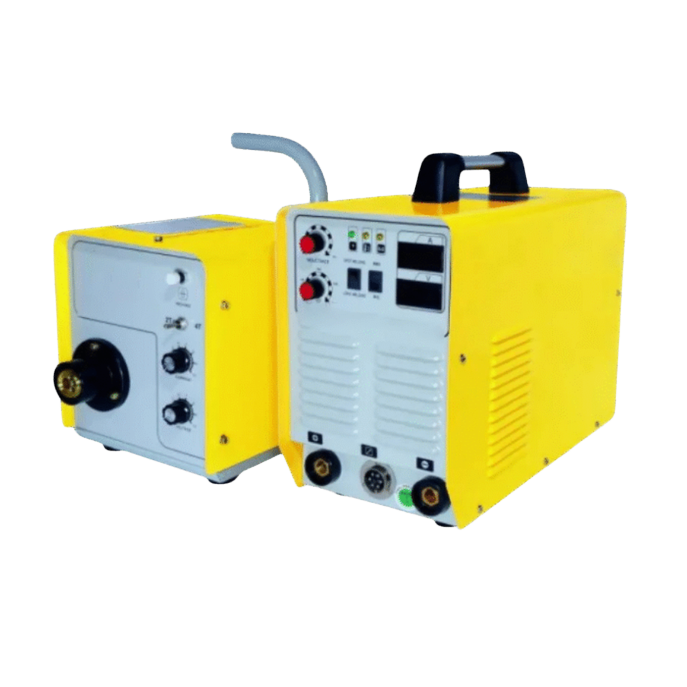

Inverter Base MIG MAG CO2 250 Three Phase
- MIG/MAG or MMA Welding features.
- Pre-selection of OCV and Gas Flow Rate.
- Smooth, spatter-free CO2, MIG/MAG welding.
- Excellent quality with Solid/Flux cored/SS Wire.
- Protection against Thermal Overload.
- Maintenance-free and weld-safe rugged outfit.
- Ready to use Package Supplied with sturdy Gun (3 MTR. long), 2/4 roll Drive Wire Feeder and all accessories.
- Can be supplied with 5/10/15 Mtrs. Long interconnection cable for better accessibility at long-distance welding points.
- Heavy duty, Light weight, flexible cable, Gas/Water Cooled Torch.
- Unmatched Welding Performance.
- Compact in size and Light in Weight.
Inverter Base MIG MAG CO2 250 Three Phase Manufacturer and Supplier in Ahmedabad India
The Inverter Base MIG MAG CO2 250 Three Phase from Satech Machinery Pvt Ltd is a high-performance welding machine designed to provide exceptional results in industrial welding applications. Built with advanced inverter technology, this machine offers improved energy efficiency, delivering consistent power and a smooth, stable arc for high-quality welds. Its versatile design supports MIG, MAG, and CO2 welding processes, making it ideal for a wide range of materials, including mild steel, stainless steel, aluminum, and more. The three-phase power supply ensures reliable operation, even under heavy-duty conditions.
Engineered for durability and ease of use, the MIG MAG CO2 250 features an intuitive control panel that allows for precise adjustments to welding parameters, ensuring optimal performance for different applications. Its robust cooling system ensures stable performance during extended welding sessions, preventing overheating and extending the life of the machine. With safety features such as thermal overload protection, the MIG MAG CO2 250 guarantees secure operation. Whether you’re in the automotive, construction, fabrication, or heavy machinery industries, this machine provides the reliability and versatility required for demanding welding tasks.
Optional Accessories
Inquire Here
Technical Specifications
| PARTICULARS | UNITS | 250MIG-T |
|---|---|---|
| Input Supply | Phase | 415V, 3 Phase 50/60 Hzs AC |
| Input Current | Amps | 14 |
| Rated KVA | KVA | 9.2 |
| Output Current Range | Amps | 50-250 |
| Open Circuit Voltage DC | Volts | 15-29 |
| Welding Current @60% Duty Cycle | 250 | |
| Wire Feeder Type | Seprate | |
| Diameter of the Coil | MM | 270 |
| Diameter of the Wire | MM | 0.8 |
| Insulation Class | F | |
| Cooling | Forced Air Cooled | |
| Protection Class | IP21 | |
| Max. Dimensions (Approx) (L x W x H) | Μ.Μ. | 500X205X370 |
| Wire Feeder Dimension (Approx) | Μ.Μ. | 490X185X330 |
| Weight (Approx) | Kgs. | 28 |
