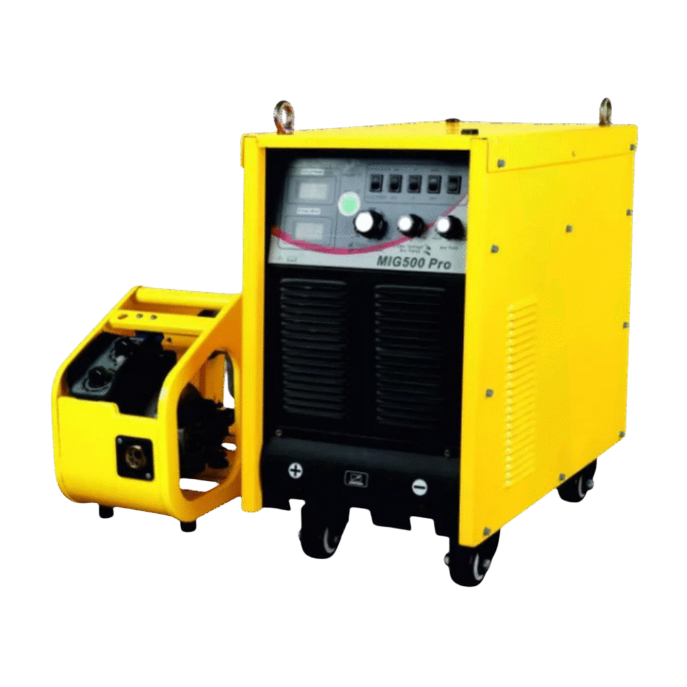

Inverter Base MIG MAG CO2 500 / 600
- MIG/MAG or MMA Welding features.
- Pre-selection of OCV and Gas Flow Rate.
- Smooth, spatter-free CO2, MIG/MAG welding.
- Excellent quality with Solid/Flux cored/SS/Aluminum Wire.
- Protection against Thermal Overload.
- Maintenance-free and weld-safe rugged outfit.
- Ready to use Package Supplied with sturdy Gun (3 MTR. long), 2/4 roll Drive Wire Feeder and all accessories.
- Can be supplied with 5/10/15 Mtrs. Long interconnection cable for better accessibility at long-distance welding points.
- Heavy duty. Lightweight, flexible cable, Gas/Water Cooled Torch.
- Unmatched Welding Performance.
- Compact in size and Light in Weight.
Inverter Base MIG MAG CO2 500 / 600 Manufacturer and Supplier in Ahmedabad India
The Inverter Base MIG MAG CO2 500/600 welding machine from Satech Machinery Pvt Ltd is a high-performance, industrial-grade welding solution designed for heavy-duty applications. Equipped with advanced inverter technology, this machine delivers exceptional efficiency, energy savings, and precise welding control, ensuring consistent, high-quality welds across a wide variety of materials. Whether you’re working with steel, stainless steel, or aluminum, the MIG MAG CO2 500/600 offers versatile welding capabilities for both MIG (Metal Inert Gas) and MAG (Metal Active Gas) processes, making it suitable for various industries, including automotive, construction, and metal fabrication.
The MIG MAG CO2 500/600 is engineered for optimal performance in demanding environments. With a powerful output range, it can handle larger-scale welding projects, providing reliable, stable welding arcs even under tough conditions. The machine’s robust design and advanced cooling system ensure long-lasting durability, while its user-friendly interface allows for easy adjustments to voltage, wire feed speed, and other parameters. Equipped with key safety features like thermal overload protection, this machine guarantees safe and reliable operation. Whether you’re working on large structural welds or high-precision tasks, the MIG MAG CO2 500/600 is built to deliver professional-grade results with maximum efficiency.
Optional Accessories
Inquire Here
Technical Specifications
| PARTICULARS | UNITS | 500MIG | 600MIG |
|---|---|---|---|
| Input Supply | Phase | 415V, 3 Phase 50/60 Hzs AC | |
| Input Current | Amps | 37 | 50 |
| Rated KVA | KVA | 24.7 | 32 |
| Output Current Range | Amps | 50-500 | 50-600 |
| Open Circuit Voltage DC | Volts | 15-39 | 15.42 |
| Welding Current @60% Duty Cycle | 500 | 600 | |
| Wire Feeder Type | Seprate | ||
| Diameter of the Coil | MM | 270 | |
| Diameter of the Wire | MM | 0.8/1.2/1.6 | |
| Insulation Class | F | ||
| Cooling | Forced Air Cooled |
||
| Protection Class | IP21 | ||
| Max. Dimensions (Approx) (L x W x H) | Μ.Μ. | 580X320X620 | 580X320X620 |
| Wire Feeder Dimension (Approx) | Μ.Μ. | 470X200X330 | 470X200X330 |
| Weight (Approx) | Kgs. | 58 | 62 |
