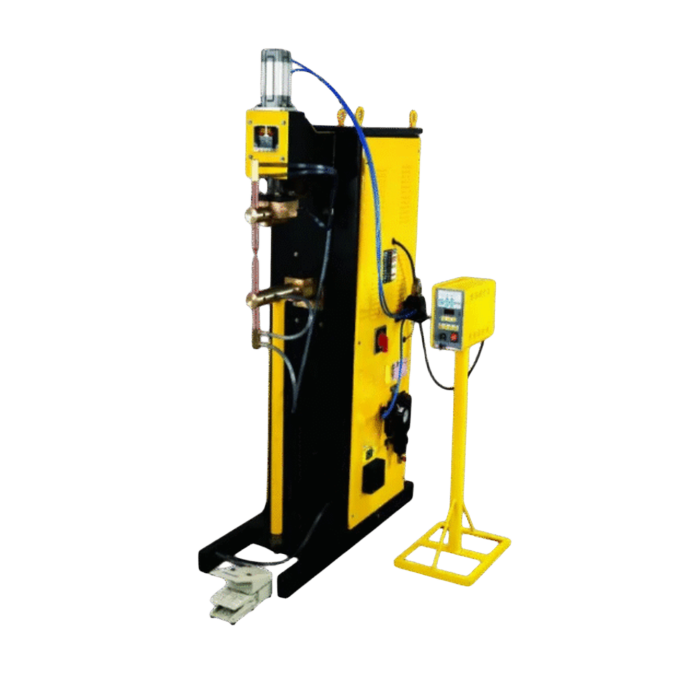

Pneumatic Spot Welding
- TRANSFORMER: Low leakage [High linkage] design, proper cooling and insulation, including winding varnishing by vacuum pressurized impregnating system to enhance reliability and service life.
- TIME & CURRENT CONTROL: Current setting from min. to max. can done by 6 position, off load tap changing switch & micro processor based synchronous controller with 25 different programs of setting is incorporated with these machines in order to obtain consistent and accurate weld results of the jobs
- ELECTRODES: One pair of 2 straight electrodes made from hardened copper-alloy is supplied with the equipment. Other types of spare electrodes can be supplied on specific orders.
- COOLING: Electrodes and arms are provided with water cooling arrangement with hose connections. Main Transformer natural Air Cooled.
Pneumatic Spot Welding Manufacturer and Supplier in Ahmedabad India
At Satech Machinery Pvt Ltd, we specialize in providing state-of-the-art welding solutions tailored to meet the diverse needs of modern industries. Our Pneumatic Spot Welding Machine is a cutting-edge solution designed to deliver high-quality, efficient, and precise welds with minimal manual intervention. Combining the power of compressed air with advanced welding technology, this machine offers a reliable, consistent, and cost-effective way to perform spot welding on a variety of materials in a wide range of industrial applications.
Spot welding is one of the most widely used welding techniques in manufacturing, particularly for joining thin sheets of metal. Traditionally, spot welding relies on electric current and pressure to join materials. However, the Pneumatic Spot Welding Machine takes the process a step further by utilizing compressed air to provide a controlled force for welding. This innovation significantly improves both the efficiency and precision of the welding process, making it an ideal choice for high-volume production environments and delicate welding tasks.
The Pneumatic Spot Welding Machine by Satech Machinery Pvt Ltd is designed to deliver superior performance in industries such as automotive manufacturing, electronics, sheet metal fabrication, and appliance manufacturing. With its combination of pneumatic power and advanced control mechanisms, the machine ensures high-quality welds with minimal operator effort and reduced risk of overheating or distortion.
Optional Accessories
Inquire Here
Technical Specifications
| PARTICULARS | UNIT | VPS-20 | VPS-30 | VPS-50 |
|---|---|---|---|---|
| Input Supply | Volts | 415 V, 1 Phase (2 lines of 3 phase supply), 50 Hzs, AC | ||
| KVA Rating @ 50% Duty Cycle | KVA | 20 | 30 | 50 |
| Nominal Throat Clearance | MM | 250 | ||
| Throat Depth | CM | 50 | 50-60 | |
| Max. Available Short Circuit Current | K Amps | 12 | 18 | 23-18 |
| Max. electrode Force @ 6 Kg/cm² | 450 | 480 | ||
| Upper Electrode Stroke Max | MM | 50 | ||
| Insulation | Class | A (Copper Wound) | ||
| Max. Dimensions with arm (Approx) (L, W, H) | (MM, MM, MM) | (1100, 520, 1630) | (1350, 600, 1750) | |
| Weight with arm (Approx) | Kgs | 220 | 250 | 295 |
| Confirm to | IS-4804 [Part III) - 1969 | |||
| Customers to Provide the Following Services | ||||
| External Water Supply at max. Temp. 30° C | Lit./Min | 7 | 10 | |
| Size of mains supply Copper Cabal | MM2 | 16 | 25 | 35 |
| Main Supply switch fuse Rating 500 Volts | Amps | 35 | 75 | 100 |
| Delayed Action fuse Rating Amps. | Amps | 30 | 60 | 90 |
