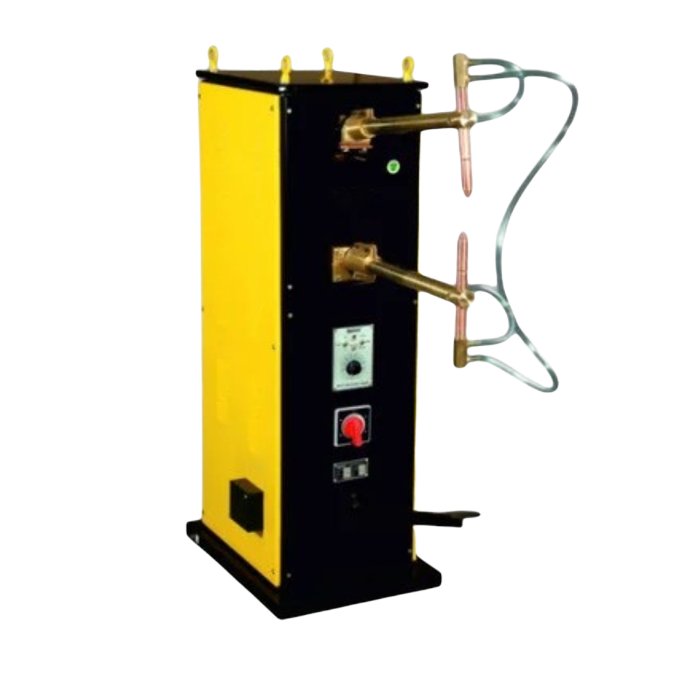

Rocker Arm (Pedal Operated) Spot Welding
- TRANSFORMER: Low leakage (High linkage) design, proper cooling and insulation including winding varnishing by vacuum pressurized impregnating system to enhance reliability and service life.
- CURRENT CONTROL: Current setting from min. To max. can be done by 6 position, off load tap changing switch.
- TIME CONTROL: Solid State Electronic timer to control weld time from 5 to 50 cycles and 1 to 10 seconds to achieve accurate and repeatable spots.
- WELD PRESSURE: Adjustable max. Pressure levels are derived from a heavy-duty compression spring mounted on a pressure rod with adjustable nut. Here is a special arrangement in the machine-minimises operator fatigue and ensures simple settings.
- COOLING: Electrodes, and arms are provided with water cooling arrangement with hose connections. (Water supply & coolant pump to be arranged by the user.)
- ELECTRODES: One pair of Morse Taper 2 straight electrodes made from hardened copper-alloy is supplied with the equipment. Other types of spare electrodes can be supplied on specific orders.
- CABINET: Modern looks, novel design concepts. Epoxy powder coated body for rust free long life.
Rocker Arm (Pedal Operated) Spot Welding Manufacturer and Supplier in Ahmedabad India
At Satech Machinery Pvt Ltd, we are dedicated to delivering high-performance, innovative welding solutions that cater to the varied needs of modern industries. Our Rocker Arm (Pedal Operated) Spot Welding Machine is designed to provide precise, reliable, and high-quality welds for a wide range of applications. Combining the traditional power of spot welding with an advanced, easy-to-use pedal-operated mechanism, this machine is perfect for both small-scale operations and large industrial production lines.
Spot welding, particularly for thin sheet metal, is an essential technique in numerous industries, including automotive, electronics, appliance manufacturing, and metal fabrication. The Rocker Arm (Pedal Operated) Spot Welding Machine provides an efficient, hands-free approach to this welding process, giving operators greater control over welding pressure and welding time, while minimizing operator fatigue and increasing overall productivity.
Optional Accessories
- Welding Cable
- Earthing Clamp
- Welding Holder
- Lugs
- Welding Helmet
Inquire Here
Technical Specifications
| PARTICULARS | UNIT | VS-6 | VS-8 | VS-10 | VS-15 |
|---|---|---|---|---|---|
| Input Supply | Volts | 415 V, 1 Phase (2 lines of 3 phase supply), 50 Hzs. AC | |||
| Rating @ 50% Duty Cycle | KVA | 6 | 8 | 10 | 15 |
| Nominal Throat Clearance | MM | 250 | |||
| Throat Depth | MM | 200, 300, 400 | 300, 400, 500 | 300, 400, 500 | 300, 400, 600 |
| Welding Range Mild Steel-Max.2x Thickness-Min.2x | MM MM | 2.0, 1.6, 1.0 0.3, 0.25, 0.1 | 2.5, 2.0, 1.25 0.35, 0.3, 0.2 | 3.0, 2.5, 1.5 0.4, 0.3, 0.2 | 3.5, 3.0, 1.0 0.6 0.5 0.3 |
| Brass Steel-Max.2x Thickness-Min.2x | MM MM | 0.8, 0.7, 0.45 0.17, 0.1, 0.08 | 1.0, 0.9, 0.6 0.2, 0.1, 0.08 | 1.2, 1.1, 0.75 0.25, 0.2, 0.12 | 2.0, 1.5, 0.9 0.3, 0.2, 0.1 |
| Stainless Steel-Max.2x Thickness-Min.2x | MM MM | 1.6, 1.4, 0.8 0.25, 0.2, 0.12 | 2.0, 1.8, 1.0 0.3, 0.25, 0.15 | 2.4, 2.2, 1.2 0.32, 0.28, 0.18 | 3.0, 2.4, 0.9 0.4, 0.3, 0.1 |
| Max. Available short ckt. Current | ΚΑ | 6.5, 5.5, 5 | 8, 7.5, 7 | 8.5, 7.5, 6 | 11, 10, 8 |
| Nominal Electrode Force (Approx) | Kg. | 150, 100, 75 | 150,100, 75 | 150, 100, 75 | 150, 100, 60 |
| Max. Electrode Stroke | MM | 70 | |||
| Insulation | Class | A (Copper Wound ) | |||
| Max. Dimensions Without Arm (Approx)(L, W, H) | MM MM MM | 600 390 1330 | 630 440 1330 |
||
| Weight Without Arm (Approx) | Kgs | 120 | 130 | 140 | 150 |
| Confirms to | IS-4804 (Part II) - 1968 | ||||
| Customers to provide the following services | |||||
| External Water supply at max. Temp. 30° C | Lit./Min | 3 | 5 | ||
| Size of mains Supply Copper Cable | MM² | 8 | 10 | 12 | 15 |
| Recommended Switch Rating | Amps | 30 | 45 | 63 | |
| Delayed Action Fuse Rating | Amps | 20 | 32 | 45 | |
