Satech Machinery Pvt Ltd is a reliable Manufacturer, Exporter and Supplier of Manual Bandsaw Machine in Maharashtra.
Our Headquartered in Kuha, Ahmedabad, Gujarat, India.
Established with a vision to provide advanced cutting solutions for diverse manufacturing sectors, Satech Machinery combines engineering excellence
with unmatched customer service.
The company dedicates itself to quality craftsmanship and serves a wide range of metalworking industries such as fabrication, automotive, tool making,
machinery production, and more.

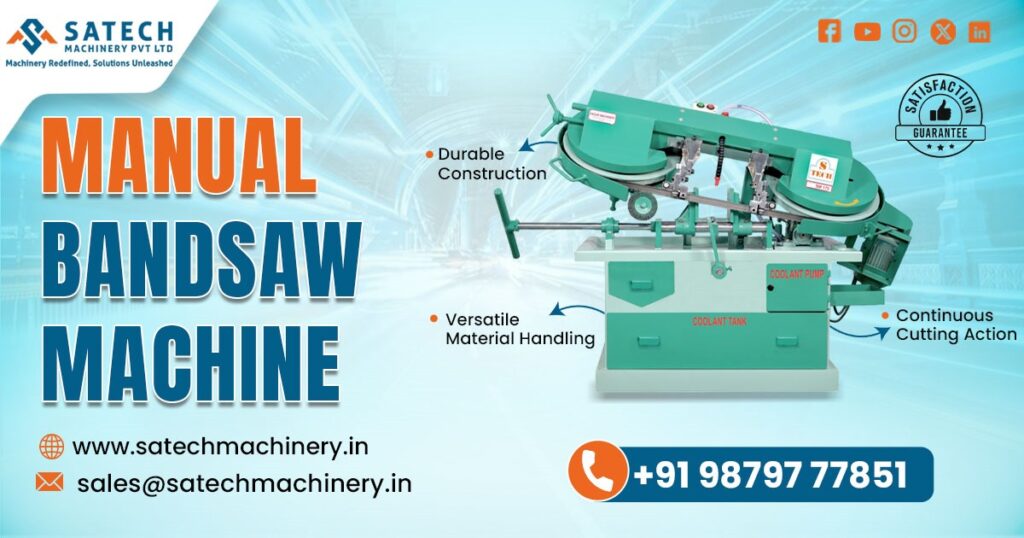

Introduction to Manual Bandsaw Machine – SM175
The SM175 Manual Bandsaw Machine by Satech Machinery is a robust and efficient cutting solution, built to perform accurate cuts on a wide variety of metals.
Whether it’s mild steel, stainless steel, brass, copper, or tool steel, this machine handles materials of varying hardness levels with ease.
Ideal for workshops, fabrication units, and industrial applications, the SM175 combines manual precision with mechanical reliability.
Its rugged construction, adjustable features, and powerful components make it a dependable asset for all your cutting requirements.
Work of the Manual Bandsaw Machine
The Manual Bandsaw Machine is designed to deliver precision cutting of metal materials in an industrial setting.
The machine operates manually but includes semi-automatic features such as hydraulic feed control and automatic shut-off after the cut.
The machine’s bi-metal blade and stable clamping system ensure that even tough metals are cut accurately and consistently.
It is widely used in:
- Metal fabrication shops
- Machinery manufacturing units
- Automotive workshops
- Tool and die making industries
- Structural steel plants
Technical Specifications
| MODEL | SM 175 |
| Cutting Cap. – Round (mm) | 175 |
| Cutting Cap. – Square (mm) | 150 x 150 |
| Motor | 1 HP, 1440 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive | Helical Gear Pinion |
| V-Belt Size | A35 |
| Blade Size (mm) | 3000 x 27 x 0.9 |
| Blade Speed (mtr/min) | 37-52-70 |
| Weight (Kg) | 300 |
| Dimensions L x W x H (mm) | 1700 x 740 x 1070 |
Standard Accessories Included
- Electric Motor
- Coolant Pump
- ON/OFF Push Button
- Job Stopper
- M42 HSS Bi-Metal Blade
- Swarf Cleaning Brush
- Tool Kit
Optional Accessory
- Material Roller Stand
Uses of Manual Bandsaw Machine
- Industrial Metal Cutting
- Workshop Use
- Tool Making
- Automobile Components
- Educational Institutions
FAQs:
Q1: What type of materials can be cut with the SM175?
A: The SM175 can cut a wide range of materials including copper, brass, aluminum, mild steel, stainless steel, alloy steel, and tool steel.
Q2: Is this machine suitable for high-volume production?
A: While it is a manual machine, it is robust enough for medium-scale production and frequent use in workshops and fabrication shops.
Q3: Does the machine include a coolant system?
A: Yes, it comes with an automatic coolant pump to reduce heat and enhance blade life.
Q4: Can the blade be replaced easily?
A: Yes, the M42 HSS bi-metal blade is standard and easily replaceable when needed.
Q5: Is the machine safe for beginners to use?
A: Yes, it includes safety features such as auto shut-off and firm clamping vices, making it user-friendly and secure for trained personnel.
Satech Machinery Pvt Ltd is a Supplier of Manual Bandsaw Machine in Maharashtra including locations in Mumbai, Pune, Nagpur, Thane, Pimpri-Chinchwad, Nashik, Kalyan-Dombivli,
Vasai-Virar, Aurangabad, Navi Mumbai, Solapur, Mira-Bhayandar, Bhiwandi-Nizampur, Jalgaon, Amravati, Nanded-Waghala, Kolhapur, Ulhasnagar, Sangli, Malegaon, Akola, Latur, Dhule,
Ahmednagar, Chandrapur, Parbhani, Ichalkaranji, Jalna, Ambarnath, Bhusawal, Panvel, Badlapur, Beed, Gondia, Satara, Barshi, Yavatmal, Achalpur, Osmanabad, Nandurbar, Wardha, Udgir,
Hinganghat.
For more information or to place an order, contact us today.
