Satech Machinery Pvt. Ltd. is a leading provider of premium-quality Pivot Type Manual Bandsaw Machines in Kochi, Kerala, designed to deliver accurate, efficient, and cost-effective metal cutting solutions.
Our bandsaw machines are engineered to meet the demanding requirements of fabrication workshops, engineering industries, metal processing units, and manufacturing facilities.
Built with robust construction and advanced cutting technology, our Pivot Type Manual Bandsaw Machines provide superior cutting performance for a wide range of ferrous and
non-ferrous metals, ensuring enhanced productivity and precision.
Our manufacturing unit is based in Ahmedabad, Gujarat, India.
Why Choose Satech Machinery’s Pivot Type Manual Bandsaw Machine?
- Heavy-duty machine structure for long service life.
- High cutting accuracy for industrial applications.
- User-friendly operation with minimal maintenance requirements.
- Suitable for continuous workshop and production use.
- Energy-efficient motor for optimized performance.
- Smooth and vibration-free cutting operation.
- Designed for reliable performance in demanding environments.
Wide Range of S-Tech Metal Cutting Bandsaw Machine
Our Pivot Type Manual Bandsaw Machine can efficiently cut various materials, including:
- Mild Steel (MS)
- Stainless Steel (SS)
- Alloy Steel
- Tool Steel
- Copper
- Brass
- Aluminum
- Structural Steel Sections
Our machine can handle different profiles such as:
- Round Bars
- Square Bars
- Flat Bars
- Angles
- Channels
- Pipes
- Tubes
- Hollow Sections

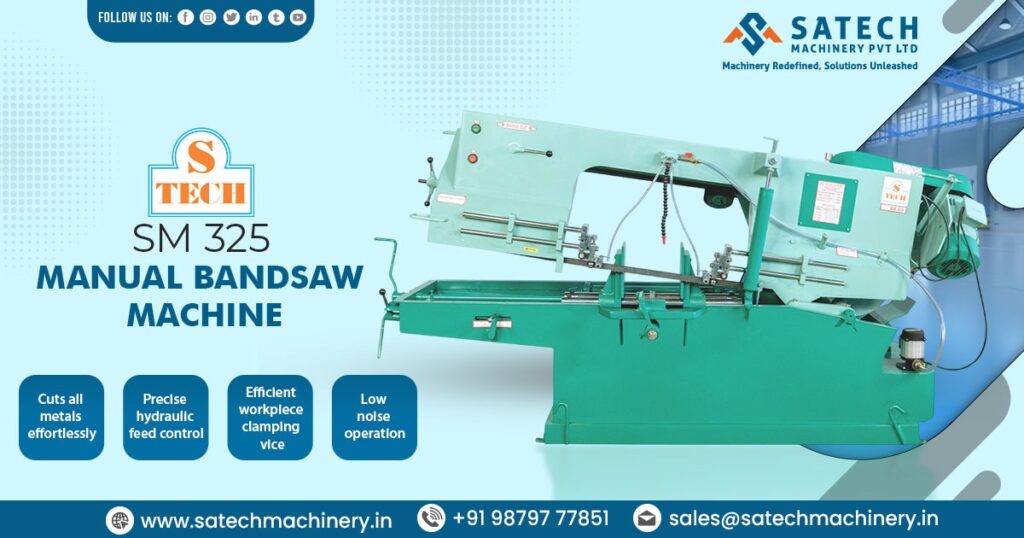

Features of SM 325 Manual Metal Cutting Bandsaw Machine
Precision Cutting Performance
Our machine is equipped with a high-quality bi-metal bandsaw blade that delivers faster, smoother, and more accurate cuts with reduced material wastage.
Hydraulic Feed Control
Advanced hydraulic feed control allows operators to adjust cutting pressure according to material type and size, ensuring consistent cutting quality.
Efficient Clamping System
A heavy-duty vice firmly holds the workpiece during operation, reducing vibration and improving cutting precision.
Automatic Machine Stop
The machine automatically stops after completing the cut, enhancing operational safety and reducing manual intervention.
Adjustable Blade Guide System
Chrome-plated adjustable blade guide units improve blade stability and cutting accuracy while extending blade life.
Automatic Coolant Circulation
The integrated coolant system helps maintain blade temperature, improves cutting efficiency, and increases blade durability.
Low Noise Operation
Designed with precision components and a sturdy gearbox drive system, the machine operates smoothly with minimal noise.
Spring-Assisted Saw Arm
The spring tension mechanism allows easy adjustment of the saw arm load, enabling efficient cutting of different material sizes and grades.
Standard Accessories
Every Pivot Type Manual Bandsaw Machine is supplied with:
- Electric Motor
- Coolant Pump
- ON/OFF Push Button
- Job Stopper
- M42 HSS Bi-Metal Blade
- Swarf Cleaning Brush
- Complete Tool Kit
Optional Accessories
To further improve productivity, the following accessories are available:
- Material Roller Stand
- Customized Work Support Systems
- Additional Blade Options
Technical Specifications – SM 325 Manual Bandsaw Machine
| Specification | Details |
| Model | SM 325 |
| Round Cutting Capacity | 325 mm |
| Square Cutting Capacity | 250 x 250 mm |
| Main Motor | 2 HP, 960 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive System | Worm Gearbox |
| V-Belt Size | A47 |
| Blade Size | 3760 x 27 x 0.9 mm |
| Blade Speed | 22, 37, 55, 75 m/min |
| Swing Cut | Yes |
| Machine Weight | 460 Kg |
| Dimensions (L x W x H) | 2500 x 850 x 1200 mm |
Applications of Hinge Type Metal Cutting Bandsaw Machine:
Our Pivot Type Manual Bandsaw Machines are widely used in:
- Steel Fabrication Industries
- Engineering Workshops
- Manufacturing Plants
- Automobile Component Industries
- Construction Equipment Manufacturing
- Metal Processing Units
- Tool Rooms
- Industrial Fabrication Projects
Leading 325 mm Manual Bandsaw Machine Manufacturer and Supplier in Kochi
Satech Machinery Pvt. Ltd. is committed to providing high-quality industrial cutting solutions that help businesses improve efficiency and production output.
Our Pivot Type Manual Bandsaw Machines are manufactured using premium-grade materials and advanced engineering standards to deliver consistent and dependable performance.
We supply Pivot Types Manual Bandsaw Machine in Kochi, Kerala including locations Thiruvananthapuram, Kozhikode, Kochi, Kollam, Thrissur, Kannur, Alappuzha, Kottayam, Palakkad, Manjeri,
Thalassery, Thrippunithura, Ponnani, Vatakara, Kanhangad, Payyanur, Koyilandy, Parappanangadi, Kalamassery, Kodungallur, Neyyattinkara, Tanur, Kayamkulam, Malappuram, Guruvayur, Thrikkakkara,
Wadakkancherry, Nedumangad, Kondotty, Tirurangadi.
