Choosing a horizontal bandsaw machine starts with matching its cutting capacity, blade specifications, and operating speeds to your workshop’s requirements.

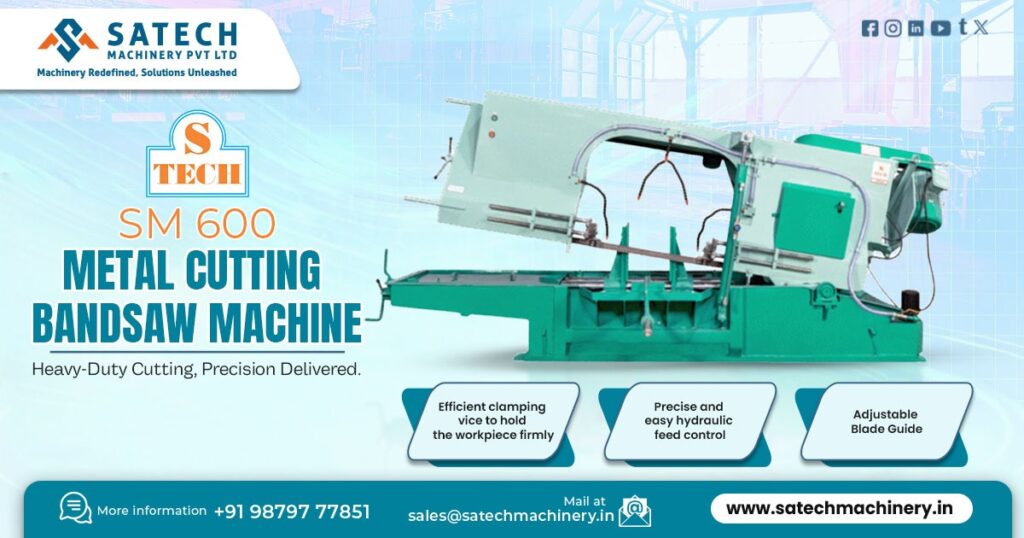

Satech Machinery Pvt. Ltd. offers a Manual Bandsaw Machine with a 600 mm round cutting capacity, a worm gearbox drive, and an M42 HSS bi-metal blade.
With four blade speed settings and practical accessories for material handling and chip removal, this machine provides a straightforward setup for industrial cutting operations.
Our Manufacturing unit is based in Ahmedabad, Gujarat, India.

Features of the SM 600 Manual Bandsaw Machine

1. Capacity for Large Workpieces

• Round cutting capacity: Up to 600 mm.
• Square cutting capacity: Up to 425 × 425 mm.
• These capacities help buyers assess whether the machine can accommodate their required stock sizes.

2. 5 HP Electric Motor and Worm Gearbox Drive

• Equipped with a 5 HP motor operating at 960 RPM.
• Uses a worm gearbox for the drive system.
• Specified with a B68 V-belt for replacement and maintenance planning.

3. M42 HSS Bi-Metal Blade

• Supplied with an M42 HSS bi-metal blade.
• Blade dimensions: 5800 × 41 × 1.3 mm.
• Confirm blade tooth pitch and suitability for your material and section size when selecting the machine.

4. Four Blade Speed Settings

• Available blade speeds: 22, 37, 55, and 75 metres per minute.
• Speed selection allows operators to adjust the setup to suit the cutting task.
• The appropriate setting depends on the workpiece material, blade selection, and operating conditions.

5. Coolant and Swarf Management

• Includes a 0.25 HP coolant pump operating at 2800 RPM.
• Supplied with a swarf cleaning brush to assist with chip removal.
• These features support routine cutting and machine care.

6. Practical Operating Accessories

• ON-OFF push button: Provides straightforward start and stop control.
• Job-stopper: Helps position stock for repeated cutting lengths.
• Material roller stand: Supports material during loading and positioning.
• Tool kit: Provides tools for routine adjustments.

Standard Equipment and Accessories of S-Tech SM 600 Manual Bandsaw Machine

The machine comes with:

• Electric motor.
• Coolant pump.
• ON-OFF push button.
• Job-stopper.
• M42 HSS bi-metal blade.
• Swarf cleaning brush.
• Tool kit.
• Material roller stand.

Frequently Asked Questions

Q1: What is the maximum cutting capacity?
A1: The machine accommodates round stock up to 600 mm and square stock up to 425 × 425 mm.

Q2: Which blade is supplied?
A2: It comes with an M42 HSS bi-metal blade measuring 5800 × 41 × 1.3 mm.

Q3: What blade speeds are available?
A3: The four blade speeds are 22, 37, 55, and 75 metres per minute.

Q4: Does this machine support swing cutting?
A4: No. Swing cutting is not available on this model.

Q5: Are a coolant pump and roller stand included?
A5: Yes. Both the coolant pump and material roller stand are included in the supplied equipment.

We Supply Bandsaw Machine in Madhya Pradesh including locations Indore, Bhopal, Jabalpur, Gwalior, Ujjain, Sagar, Dewas, Satna, Ratlam, Rewa, Katni, Singrauli, Burhanpur, Morena,
Khandwa, Bhind, Chhindwara, Guna, Shivpuri, Vidisha, Chhatarpur, Damoh, Mandsaur, Khargone, Neemuch, Pithampur, Narmadapuram, Itarsi, Sehore, Betul, Seoni, Datia, Nagda, Shahdol.

Contact Satech Machinery Pvt. Ltd. today to discuss your horizontal bandsaw requirements and request specifications.
