Satech Machinery Pvt. Ltd. manufactures robust bandsaw machines engineered for accurate, smooth, and efficient metal cutting. Designed for industrial workshops, fabrication units, and engineering applications,
our bandsaw machine handles different metals, profiles, and workpiece sizes with dependable performance.
We are based in Ahmedabad, Gujarat, India.
Industrial Bandsaw Machine for Precise Metal Cutting

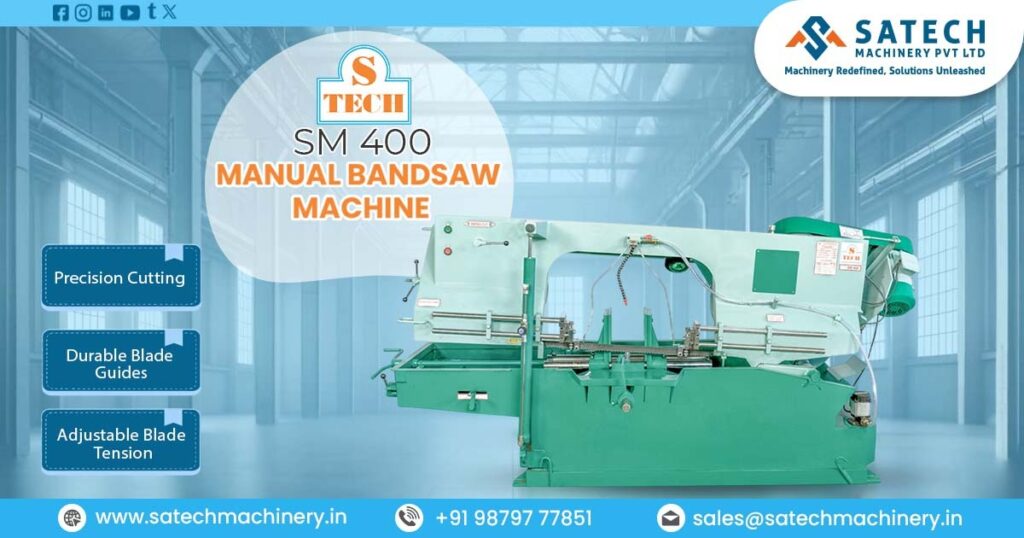

Our S-Tech SM400 Manual Bandsaw Machine cuts materials ranging from soft metals to hardened industrial steels, including:
- Copper
- Brass
- Aluminium
- Mild steel
- Alloy steel
- Stainless steel
- Tool steel
Our Pivot Types Manual Bandsaw Machine can cut multiple material sections, making it suitable for general fabrication, production, maintenance, and metal-processing operations.
Supported Material Sections
- Round bars
- Square bars
- Flat bars
- Angles
- Channels
- Pipes
- Other standard metal profiles
Features of Our Swing Type Manual Bandsaw Machine
- Efficient clamping vice holds the workpiece firmly during cutting.
- Hydraulic feed control enables precise and convenient saw-arm movement.
- M42 HSS bi-metal blade delivers faster, smoother, and more accurate cuts.
- Adjustable chrome-plated blade guides improve blade stability and cutting precision.
- Automatic turn-off stops the machine after completing the cut.
- Low-noise operation supports a comfortable working environment.
- Automatic coolant pump helps control cutting temperature and improve blade life.
- Swarf-cleaning brush removes metal chips from the blade during operation.
- Adjustable spring tension controls the saw-arm load for different materials and sizes.
- Swing-cut facility supports flexible cutting requirements.
- Worm gearbox drive provides reliable power transmission and consistent operation.
- Multiple blade speeds allow operators to select the appropriate speed for each material.
Standard Machine Accessories
- Electric motor
- Coolant pump
- ON/OFF push-button controls
- Job stopper
- M42 HSS bi-metal blade
- Swarf-cleaning brush
- Tool kit
- Material roller stand
Bandsaw Machine Technical Specifications
| Specification | Details |
| Round Cutting Capacity | 400 mm |
| Square Cutting Capacity | 350 × 350 mm |
| Main Motor | 2 HP, 960 RPM |
| Coolant Pump | 0.15 HP, 2800 RPM |
| Drive System | Worm gearbox |
| V-Belt Size | A53 |
| Blade Size | 4420 × 34 × 1.1 mm |
| Blade Speeds | 22, 37, 55 and 75 m/min |
| Swing Cut | Yes |
| Machine Weight | 650 kg |
| Dimensions (L × W × H) | 2750 × 920 × 1220 mm |
Bandsaw Machine Applications
Our 400mm bandsaw machine is suitable for:
- Metal fabrication workshops
- Steel processing units
- Machine shops
- Engineering companies
- Automobile component manufacturers
- Tool rooms
- Maintenance departments
- General manufacturing facilities
Frequently Asked Questions
Q1: What metals can this bandsaw machine cut?
A1: It can cut copper, brass, aluminium, mild steel, alloy steel, stainless steel, and tool steel.
Q2: What is the maximum round cutting capacity?
A2: The machine can cut round material with a maximum diameter of 400 mm.
Q3: Does the machine include hydraulic feed control?
A3: Yes. Its hydraulic feed system provides controlled and precise saw-arm movement during cutting.
Q4: Which blade is supplied with the machine?
A4: The machine uses a 4420 × 34 × 1.1 mm M42 HSS bi-metal blade.
Q5: Does the bandsaw stop automatically after cutting?
A5: Yes. The automatic turn-off system switches off the machine when the cutting cycle is completed.
We provide Horizontal Bandsaw Machine in Maharashtra including locations Mumbai, Pune, Nagpur, Thane, Pimpri-Chinchwad, Nashik, Kalyan-Dombivli, Vasai-Virar, Aurangabad, Navi Mumbai,
Solapur, Mira-Bhayandar, Bhiwandi-Nizampur, Jalgaon, Amravati, Nanded-Waghala, Kolhapur, Ulhasnagar, Sangli, Malegaon, Akola, Latur, Dhule, Ahmednagar, Chandrapur, Parbhani, Ichalkaranji,
Jalna, Ambarnath, Bhusawal, Panvel, Badlapur, Beed, Gondia, Satara, Barshi, Yavatmal, Achalpur, Osmanabad, Nandurbar, Wardha, Udgir, Hinganghat and many more.
Discover the SM400 Bandsaw Machine—precision cutting, powerful performance, and reliable efficiency. Request your quote today!
