Satech Machinery Pvt. Ltd. is a trusted and reliable Manufacturer 600 mm Semi-Automatic Bandsaw Machine in Ahmedabad, Gujarat, India.

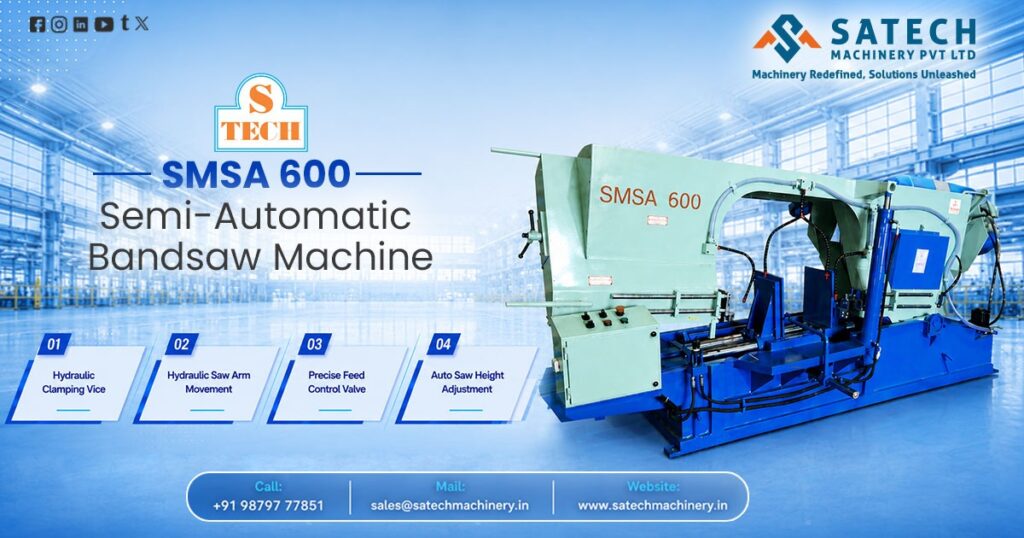

Introduction of 600 mm Semi-Automatic Bandsaw Machine
Our S-Tech SMSA 600 Semi-Automatic Bandsaw Machine is a heavy-duty metal cutting machine designed for accurate, smooth, and efficient cutting of different metal materials.
Built with advanced hydraulic technology and a strong worm gearbox drive system, this machine delivers high performance with low noise operation.
Our machine is ideal for industrial metal cutting applications where precision, durability, and productivity are important.
It is widely used in fabrication workshops, manufacturing industries, engineering plants, and construction sectors.
Working of Semi-Automatic Bandsaw Machine
SMSA 600 Semi-Automatic Bandsaw Machine works using a high-speed bi-metal bandsaw blade that moves continuously to cut metal workpieces accurately.
Working Process:
• The metal job is securely clamped using a hydraulic vice.
• The saw arm automatically moves downward through hydraulic feed control.
• The rotating bi-metal blade cuts the material smoothly and accurately.
• Coolant is continuously supplied during cutting to reduce heat and increase blade life.
• After the cutting operation is completed, the machine automatically stops.
• The saw arm lifts automatically for the next operation.
Features of Horizontal Metal Cutting Bandsaw Machine
• Suitable for cutting all types of metals such as:
o Copper
o Brass
o Aluminum
o Mild Steel
o Alloy Steel
o Stainless Steel
o Tool Steel
• Can cut different material shapes including:
o Round bars
o Flat bars
o Angles
o Channels
o Pipes
• Hydraulic operated vice for strong workpiece holding.
• Smooth and precise hydraulic feed control.
• High-performance M42 HSS bi-metal blade for faster and accurate cutting.
• Adjustable chrome-plated blade guide units.
• Automatic machine off after cut completion.
• Automatic up-down motion of saw arm.
• Automatic saw arm height adjustment according to workpiece.
• Low noise and vibration operation.
• Spring tension adjustment for easy operation with different material sizes.
• Auto-operated coolant pump for blade cooling.
• Heavy-duty worm gearbox drive system.
• Robust machine construction for long service life.
• 6 months warranty against manufacturing defects.
Technical Specifications of Metal Cutting Bandsaw Machine
Specification Details
Model SMSA 600
Cutting Capacity – Round 600 mm
Cutting Capacity – Square 425 x 425 mm
Drive Motor 5 HP, 960 RPM
Hydraulic Motor 1 HP, 1440 RPM
Coolant Pump 0.15 HP, 2800 RPM
Drive Type Worm Gearbox
V-Belt Size B68
Blade Size 5800 x 41 x 1.3 mm
Blade Speed 22 / 37 / 55 / 75 mtr/min
Machine Weight 1520 kg
Machine Dimensions 3650 x 1070 x 1370 mm
Standard & Optional Accessories
• Electric Motor
• Coolant Pump
• Job Stopper
• M42 HSS Bi-Metal Blade
• Swarf Cleaning Brush
• Tool Kit
• Material Roller Stand
• Bi-Metal HSS Bandsaw Blade
• Manual Bar Feeding Mechanism with Worm Gear
• Degree Cutting Fixture
Applications & Uses of Semi-Automatic Bandsaw Machine
The SMSA 550 mm Bandsaw Machine is widely used in different industries for precision metal cutting applications.
• Structural steel cutting
• Pipe and tube cutting
• Metal fabrication work
• Industrial manufacturing processes
• Automotive component cutting
• Aerospace metal cutting applications
• Construction material cutting
• Custom profile cutting operations
• Engineering workshop applications
FAQs:
- What materials can be cut using the SMSA 600 Bandsaw Machine?
The machine can cut copper, brass, aluminum, mild steel, alloy steel, stainless steel, and tool steel easily. - What is the round cutting capacity of the machine?
The SMSA 600 can cut round material up to 600 mm diameter. - Does the machine have automatic operation features?
Yes, the machine includes automatic saw arm movement and auto machine off after cutting. - Which type of blade is used in the machine?
The machine uses an M42 or M51 HSS bi-metal bandsaw blade for faster and smoother cutting performance. - What industries commonly use this bandsaw machine?
It is commonly used in fabrication, automotive, aerospace, engineering, manufacturing, and construction industries.
