Company Overview
Satech Machinery Pvt. Ltd. is a trusted manufacturer of Horizontal Metal Cutting Bandsaw Machines based in Ahmedabad, Gujarat, India. The company specializes in delivering durable,
high-performance industrial cutting solutions for engineering and fabrication industries.
Product Overview

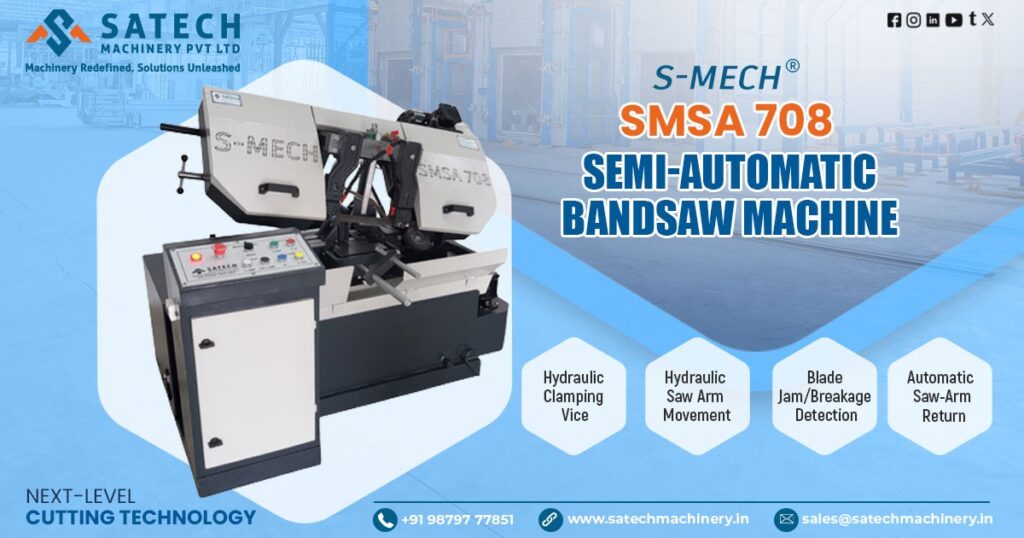

SMSA 708 Semi-Automatic Horizontal Bandsaw Machine
SMSA 708 Semi-Automatic Horizontal Metal Cutting Bandsaw Machine is a high-performance semi-automatic machine designed for precise and efficient metal cutting operations.
It is engineered with advanced technology to ensure smooth performance, reduced downtime, and long service life.
Key Benefits
- Heavy-duty and robust construction
- High cutting accuracy with smooth finishing
- Semi-automatic operation for improved productivity
- Low vibration and stable performance
- Energy-efficient motor system
- Operator safety features
- Suitable for continuous industrial use
- Reliable worm gearbox drive mechanism
- Easy maintenance and operation
Standard Accessories
Included Components
- Electric motor
- Coolant pump
- Job stopper
- M42 HSS bi-metal blade
- Swarf cleaning brush
- Tool kit
Optional Accessories
Additional Equipment
- Material roller stand
- Bi-metal HSS bandsaw blade
- Manual bar feeding mechanism with worm gear
- Degree cutting fixture
Technical Specifications
Machine Details
- Model: SMSA 708
- Cutting Capacity (Round): 175 mm
- Cutting Capacity (Flat): 200 × 100 mm
- Saw Motor: 1 HP, 1440 RPM
- Hydraulic Motor: 1 HP, 1440 RPM
- Coolant Pump: 0.15 HP, 2800 RPM
- Drive Type: Worm gearbox
- V-Belt Size: B30
- Blade Size: 2540 × 27 × 0.9 mm
- Blade Speed: 33–52–77 m/min
- Weight (Approx.): 330 kg
- Machine Dimension (L × W × H): 1400 × 1010 × 1030 mm
Working Principle
How the Machine Operates
The horizontal bandsaw machine operates using a continuous loop blade that moves in a single direction at controlled speed. The workpiece is firmly clamped while the saw arm gradually
descends onto the material.
The bi-metal blade cuts through metal with high precision and minimal wastage. A hydraulic system ensures controlled cutting pressure, resulting in smooth and vibration-free operation.
The coolant system continuously cools the blade to enhance performance and extend blade life.
Applications
Industrial Uses
- Metal bar and rod cutting
- Pipe and tube cutting
- Structural steel fabrication
- Engineering workshops
- Automotive industry applications
- Steel processing units
- Tool rooms
- Heavy machinery manufacturing
- Production and maintenance units
FAQs
1. What materials can the SMSA 708 cut?
It can cut mild steel, alloy steel, stainless steel, pipes, rods, flats, and other ferrous metals.
2. Is it suitable for continuous use?
Yes, it is designed for heavy-duty and continuous industrial operations.
3. Which blade is used?
It uses an M42 HSS bi-metal bandsaw blade for precision cutting and durability.
4. Does it include a coolant system?
Yes, it comes with a coolant pump to improve blade life and cutting efficiency.
5. Can it perform angle cutting?
Yes, angle cutting is possible using an optional degree cutting fixture.
